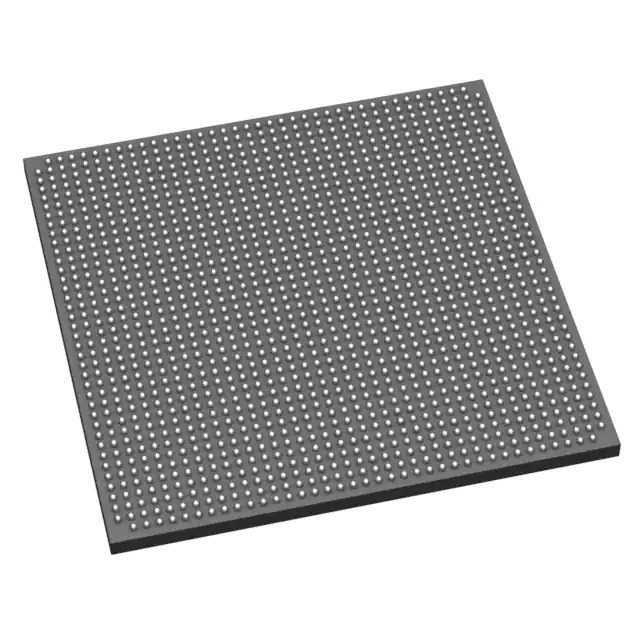

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr AMD
Series Zynq® UltraScale+™ MPSoC EV
Package Tray
Product Status Active
Architecture MCU, FPGA
Core Processor Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™, ARM Mali™-400 MP2
Flash Size -
RAM Size 256KB
Peripherals DMA, WDT
Connectivity CANbus, EBI/EMI, Ethernet, I²C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 533MHz, 600MHz, 1.3GHz
Primary Attributes Zynq®UltraScale+™ FPGA, 504K+ Logic Cells
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 1517-BBGA, FCBGA
Supplier Device Package 1517-FCBGA (40x40)
Number of I/O 464
Base Product Number XCZU7
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A002A4 XIL
HTSUS 8542.39.0001
Win Source Part Number 1357110-XCZU7EV-2FFVF1517E
Ultra Librarian 3D Model Ultra Librarian XCZU7EV-2FFVF1517E CAD Model

Description

The XCZU7EV-2FFVF1517E is an integrated circuit (IC) that falls under the category of System on Chip (SoC) in the field of embedded electronics and is manufactured by AMD.

  • Series: Zynq UltraScale+ MPSoC EV
  • Package: 1517-BBGA, FCBGA
  • Temperature Range: 0°C to 100°C
  • Speed: 533MHz to 1.3GHz
  • Processor: Quad-core ARM Cortex-A53 MPCore processor, dual-core ARM Cortex-R5 with CoreSight, and ARM Mali-400 MP2
  • Connectivity: CANbus, Ethernet, I²C, SPI, UART/USART, and USB OTG
  • Number of I/O Pins: 464
  • RAM: 256KB
  • Architecture: MCU and FPGA
  • REACH: Compliant
  • ECCN: 5A002A4 XIL
