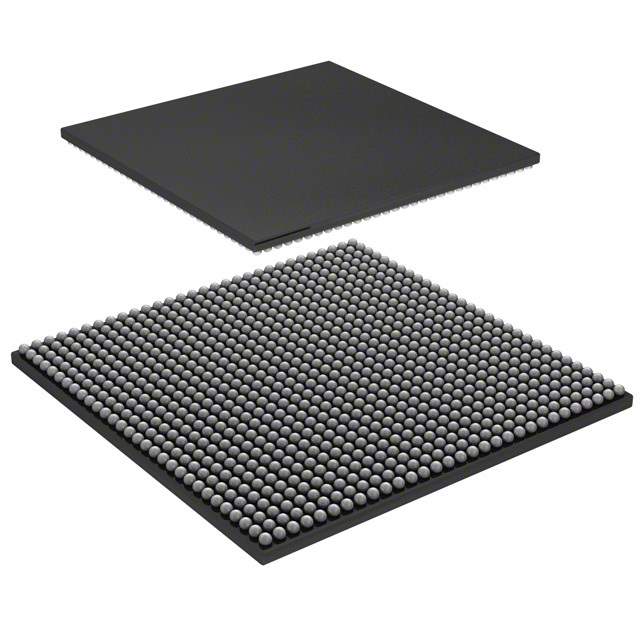

XCZU6CG-2FFVC900E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - System On Chip (SoC)
Mfr AMD Xilinx
Series Zynq® UltraScale+™ MPSoC CG
Package Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™
RAM Size 256KB
Peripherals DMA, WDT
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 533MHz, 1.3GHz
Primary Attributes Zynq®UltraScale+™ FPGA, 469K+ Logic Cells
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 900-BBGA, FCBGA
Supplier Device Package 900-FCBGA (31x31)
Number of I/O 204
Base Product Number XCZU6
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 5A002A4 XIL
HTSUS 8542.39.0001
Standard Package 1
Win Source Part Number 1183012-XCZU6CG-2FFVC900E
Ultra Librarian 3D Model Ultra Librarian XCZU6CG-2FFVC900E CAD Model

Description

This electronic component is an embedded system on chip from the Zynq UltraScale+ MPSoC CG series by AMD Xilinx. The Win Source Part Number for this component is 1183012-XCZU6CG-2FFVC900E. It is a dual ARM Cortex-A53 MPCore with CoreSight and dual ARM Cortex-R5 with CoreSight. The component has a speed of 533MHz and 1.3GHz with 204 I/Os. It has a RAM size of 256KB and is an MCU FPGA with 469K+ logic cells. The component can operate @ a temperature range from 0°C to 100°C.
