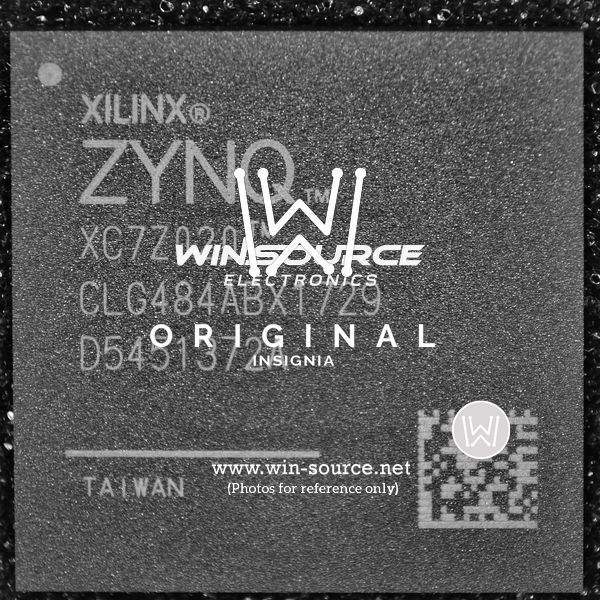

XC7Z020-3CLG484E Real Image XC7Z020-3CLG484E Real Image1 XC7Z020-3CLG484E Real Image2
Same model may have multiple batches, images only for reference.
XC7Z020-3CLG484E Real Image XC7Z020-3CLG484E Real Image1 XC7Z020-3CLG484E Real Image2
XC7Z020-3CLG484E Real Image XC7Z020-3CLG484E Real Image1 XC7Z020-3CLG484E Real Image2
Same model may have multiple batches, images only for reference.

XC7Z020-3CLG484E

Part No XC7Z020-3CLG484E
Manufacturer Amd
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC SOC CORTEX-A9 866MHZ 484BGA / Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ System On Chip (SOC) IC series Artix™-7 FPGA, 85K Logic Cells 866MHz 484-CSPBGA (19x19)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - System On Chip (SoC)
Mfr AMD Xilinx
Series Zynq®-7000
Package Tray
Architecture MCU, FPGA
Core Processor Dual ARM® Cortex®-A9 MPCore™ with CoreSight™
RAM Size 256KB
Peripherals DMA
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 866MHz
Primary Attributes Artix™-7 FPGA, 85K Logic Cells
Temperature Range - Operating 0°C ~ 100°C (TJ)
Package / Case 484-LFBGA, CSPBGA
Supplier Device Package 484-CSPBGA (19x19)
Number of I/O 130
Base Product Number XC7Z020
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Other Names 122-1895
Standard Package 84
Win Source Part Number 989298-XC7Z020-3CLG484E
Ultra Librarian 3D Model Ultra Librarian XC7Z020-3CLG484E CAD Model

Description

The XC7Z020-3CLG484E is a powerful system on chip (SoC) integrated circuit from the Zynq-7000 series.

  • Processor: Dual ARM Cortex-A9 MPCore™ processor with CoreSight™, operating @ a speed of 866MHz
  • RAM Size: 256KB
  • Logic Cells: 85K
  • Ideal for: MCU and FPGA applications
  • Connectivity Options: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG
  • Peripherals: DMA
  • I/O Pins: 130
  • Package: 484-LFBGA, CSPBGA
  • Temperature Range: 0°C to 100°C (TJ)
  • Choice: Reliable and efficient choice for your embedded system design needs
