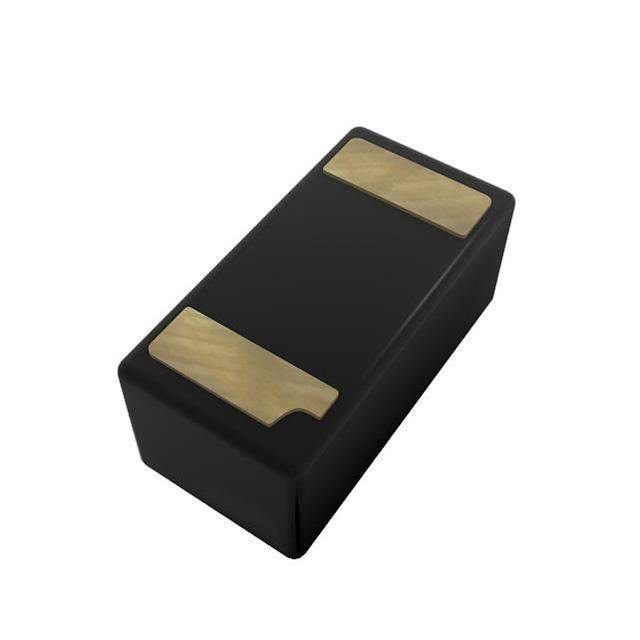

AZ4120-01F Real Image
Same model may have multiple batches, images only for reference.

AZ4120-01F

Part No AZ4120-01F
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DEVICE HIGH VOLTAGE 1-CH 20V  /  Clamp Ipp Tvs Diode Surface Mount DFN1006P2X
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 20V (Max)
Voltage - Breakdown (Min) 22.2V
Power Line Protection No
Applications General
Temperature Range - Operating -55°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 0402 (1006 Metric)
Supplier Device Package DFN1006P2X
REACH Status Vendor Undefined
Other Names 4430-AZ4120-01FTR,4430-AZ4120-01FCT,4430-AZ4120-01FTR-ND
Win Source Part Number 1115229-AZ4120-01F
Ultra Librarian 3D Model Ultra Librarian AZ4120-01F CAD Model

Description

The AZ4120-01F is a Zener type diode manufactured by Amazing.

  • Application: General Purpose
  • Package: Cut Tape (CT)
  • Mounting: SMD (SMT)
  • Voltage Reverse Standoff: 20V (Max)
  • Voltage Breakdown: 22.2V
  • RoHS Compliant: Yes
  • Power Line Protection: No
