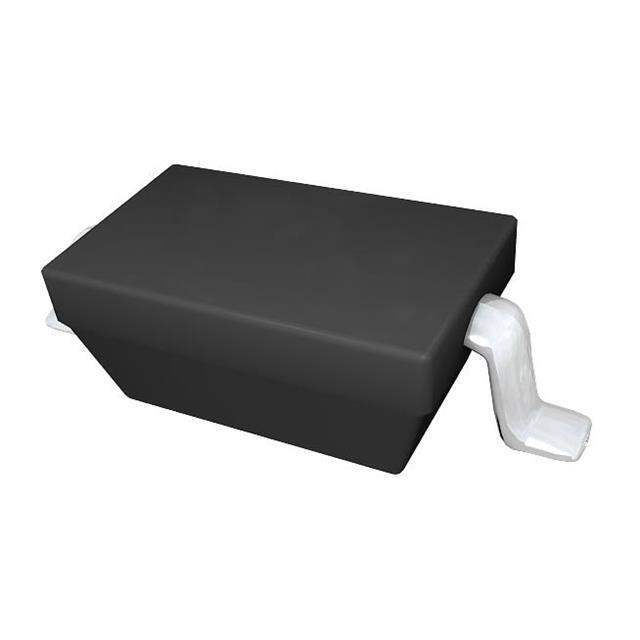

Same model may have multiple batches, images only for reference.
AZ3003-01G Amazing
Same model may have multiple batches, images only for reference.

AZ3003-01G

Part No AZ3003-01G
Manufacturer Amazing
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM SOD123
Datasheet
AZ3003-01G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection> Transient Voltage >Suppressors (TVS) TVS Diodes
Manufacturer Amazing
Packaging Strip
Part Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V (Max)
Voltage - Breakdown (Min) 4V
Power Line Protection Yes
Applications General
Ultra Librarian 3D Model Ultra Librarian AZ3003-01G CAD Model

Description

AZ3003-01G is a design which includes a unidirectional ESD rated clamping cell to protect one a power line, or one control line, or one low-speed data line in an electronic system. TheAZ3003-01G has been specifically designed to protect sensitive components which are connected to power and control lines from over-voltage damage and latch-up caused by electrostatic Discharging (ESD), Electrical FastTransients(EFT),Lightning,andCableDischarge Event (CDE)
