Same model may have multiple batches, images only for reference.

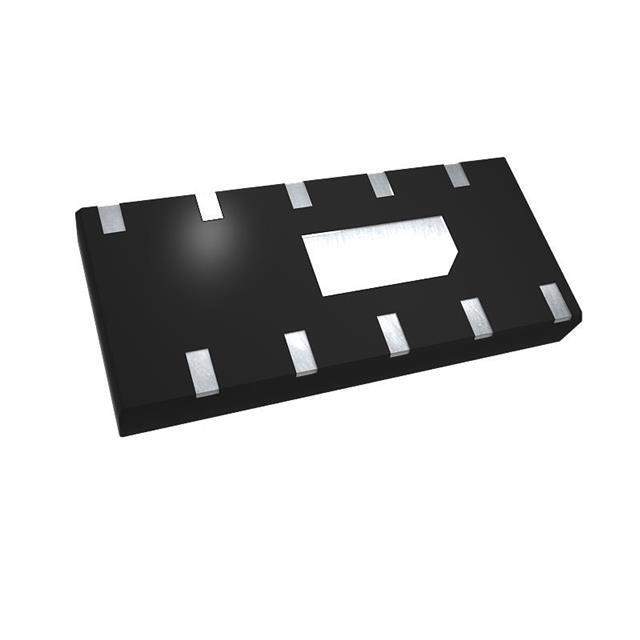

AZ1065-06F Real Image
Same model may have multiple batches, images only for reference.

AZ1065-06F

Part No AZ1065-06F
Manufacturer Amazing
Catalog TVS - Diodes
Description LOW CAP ESD HIGH SPEED 6-CH 5V  /  13V (Typ) Clamp Ipp Tvs Diode Surface Mount DFN4120P10E
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Amazing
Package Cut Tape (CT)
Type Zener
Unidirectional Channels 6
Voltage - Reverse Standoff (Typ) 5V (Max)
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 13V (Typ)
Power Line Protection No
Applications USB
Temperature Range - Operating -40°C ~ 85°C (TC)
Mounting SMD (SMT)
Package / Case 10-UDFN Exposed Pad
Supplier Device Package DFN4120P10E
REACH Status Vendor Undefined
Other Names 4430-AZ1065-06FTR,4430-AZ1065-06FCT,4430-AZ1065-06FTR-ND
Win Source Part Number 1159275-AZ1065-06F
Ultra Librarian 3D Model Ultra Librarian AZ1065-06F CAD Model

Description

The Amazing 1159275-AZ1065-06F is a Zener type circuit protection electronic component used for USB applications.

  • Win Source Part Number: 1159275-AZ1065-06F
  • Package: Cut Tape (CT)
  • Mounting Type: SMD (SMT)
  • Channels: 6 Unidirectional
  • Voltage Reverse Standoff (Max): 5V
  • Voltage Breakdown: 6V
  • Voltage Clamping @ Max Ipp (Typ): 13V
  • Operating Temperature: -40°C ~ 85°C (TC)
