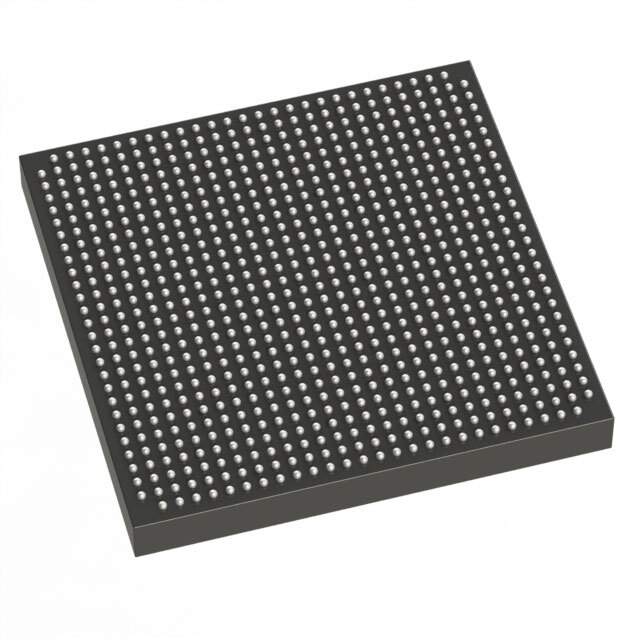

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix HardCopy
Number of LABs/CLBs 4125
Number of Logic Elements/Cells 41250
Total RAM Bits 2244096
Number of I/O 613
Operating Supply Voltage 1.425 V ~ 1.575 V
Mounting SMD
Package 780-BBGA, FCBGA
Manufacturer Package 780-FBGA (29x29)
Win Source Part Number 775615-HC1S40F780AF
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HC1S40F780AF CAD Model

Description

The Altera Stratix HardCopy series HC1S40F780AF is an integrated circuit designed for use in electronic circuits.

  • Package: 780-BBGA, FCBGA
  • Voltage Supply: 1.425 V to 1.575 V
  • I/Os: 613
  • LABs/CLBs: 4125
  • Logic Elements/Cells: 41250
  • Total RAM Bits: 2244096
  • Family: Stratix HardCopy
  • Category: Integrated Circuits (ICs)
