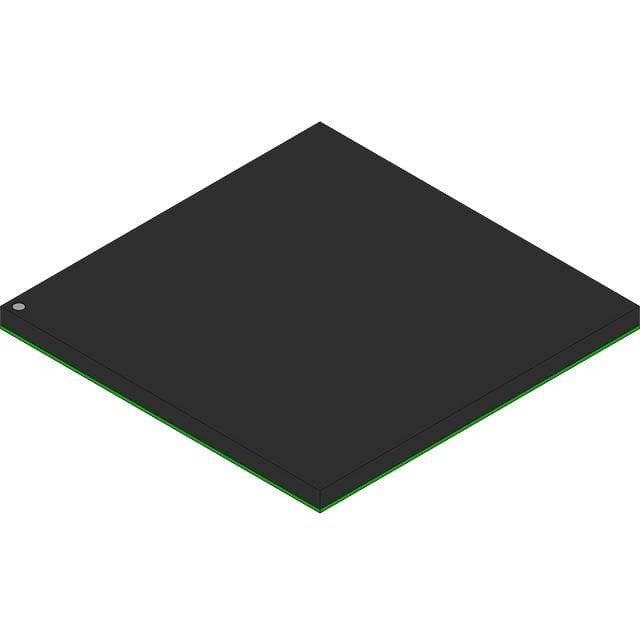

EPXA1F672C2 Altera
Same model may have multiple batches, images only for reference.

EPXA1F672C2

Part No EPXA1F672C2
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description LOADABLE PLD, PBGA672 /
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array) with Microcontrollers
Mfr Altera
Series Excalibur™
Package Tray
Product Status Obsolete
Core Type 32-Bit ARM9
Speed 200 MHz
Interface EBI/EMI, UART/USART
Program SRAM Bytes 32K
Data SRAM Bytes 16K
FPGA Core Cells 4160
FPGA Gates 100K
Voltage - Supply 1.8V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C
Package / Case 672-BBGA, FCBGA
Supplier Device Package 672-FBGA (27x27)
RoHS Status RoHS non-compliant
ECCN 3A001A7A
HTSUS 8542.39.0001
Other Names ALTALTEPXA1F672C2,2156-EPXA1F672C2-AL
Standard Package 10
Win Source Part Number 1196984-EPXA1F672C2
Ultra Librarian 3D Model Ultra Librarian EPXA1F672C2 CAD Model

Description

The Altera Excalibur series features the EPXA1F672C2 FPGA, which is an embedded FPGA with a 32-bit ARM9 core from Altera.

  • FPGA Core Cells: 4160
  • FPGA Gates: 100K
  • Program SRAM Bytes: 32K
  • Operating Temperature: 0°C to 85°C
  • Voltage: 1.8V
  • Package: 672-BBGA/FCBGA
  • Mounting: SMD
  • Interface: EBI/EMI, UART/USART
  • Obsolete: Yes
  • RoHS Compliant: No
