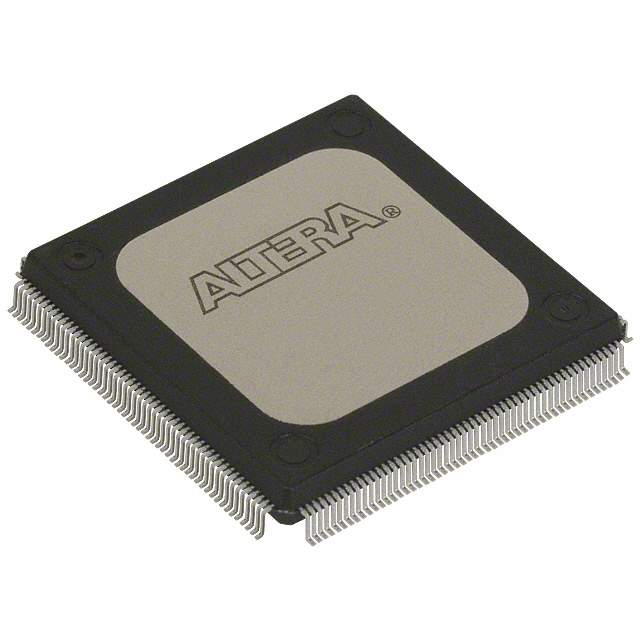

The EPM9320RC208-20N is a MAX 9000 series Complex Programmable Logic Device (CPLD) from Altera (now Intel). It offers a high-density, cost-effective solution for a variety of logic integration applications. This CPLD is known for its user-friendly architecture, in-system programmability, and high-performance capabilities.

Applications

• Address decoding
• Glue logic
• Peripheral control
• State machine implementation
• Motor control applications

Features

• 208 pins
• 320 macrocells
• High-speed performance with a 20 ns pin-to-pin delay
• In-system programmability (ISP) via JTAG interface
• Flexible architecture with programmable interconnect array (PIA)
• Low power consumption

Benefits

• Reduced board space and component count
• Faster time-to-market through in-system programmability
• Simplified design process with user-friendly software tools
• Increased system reliability due to lower power dissipation
• Design flexibility to accommodate changing requirements

Additional Details

The EPM9320RC208-20N is typically packaged in a RQFP (Quad Flat Pack) package. It operates within a specific voltage range and temperature range, ensuring reliable performance in different operating conditions. The device's architecture allows for efficient implementation of complex logic functions. Detailed timing parameters, including propagation delays and setup/hold times, are available in the product datasheet. Altera's Quartus software provides a comprehensive development environment for designing, simulating, and programming the EPM9320RC208-20N.
