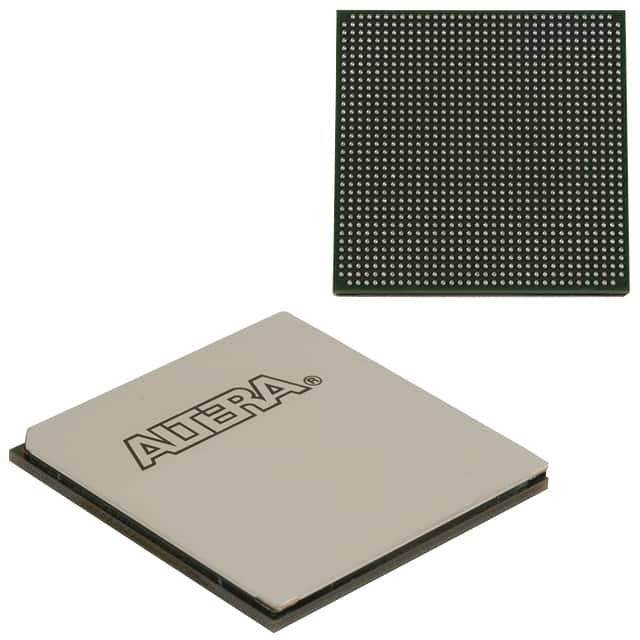

Same model may have multiple batches, images only for reference.
EP4SGX70HF35C4N
Same model may have multiple batches, images only for reference.

EP4SGX70HF35C4N

Part No EP4SGX70HF35C4N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 488 I/O 1152FBGA / Stratix? IV GX Field Programmable Gate Array (FPGA) IC 488 7564880 72600 1152-BBGA, FCBGA
Datasheet
EP4SGX70HF35C4N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - FPGAs (Field Programmable Gate Array)
Mfr Altera
Series Stratix® IV GX
Package Tray
Product Status Active
Programmable Not Verified
Number of LABs/CLBs 2904
Number of Logic Elements/Cells 72600
Total RAM Bits 7564880
Number of I/O 488
Voltage - Supply 0.87V ~ 0.93V
Mounting Type Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 1152-BBGA, FCBGA
Supplier Device Package 1152-FBGA (35x35)
Standard Package 5 pcs
MSL Level 3 (168 Hours)
ECCN 3A991D
HTSUS 8542.39.0000
Win Source Part Number 846665-EP4SGX70HF35C4N
Ultra Librarian 3D Model Ultra Librarian EP4SGX70HF35C4N CAD Model

Description

The 846665-EP4SGX70HF35C4N is an FPGA (Field Programmable Gate Array) from the Stratix IV GX series manufactured by Altera.

  • Series: Stratix IV GX
  • Application: Embedded
  • Number of LABs / CLBs: 2904
  • Number of Logic Elements / Cells: 72600
  • Voltage - Supply: 0.87V to 0.93V
  • Operating Temperature: 0°C to 85°C
  • Package / Case: 1152-BBGA
  • Size / Dimension: 35x35
  • Number of I/O: 488
  • Total RAM Bits: 7564880
