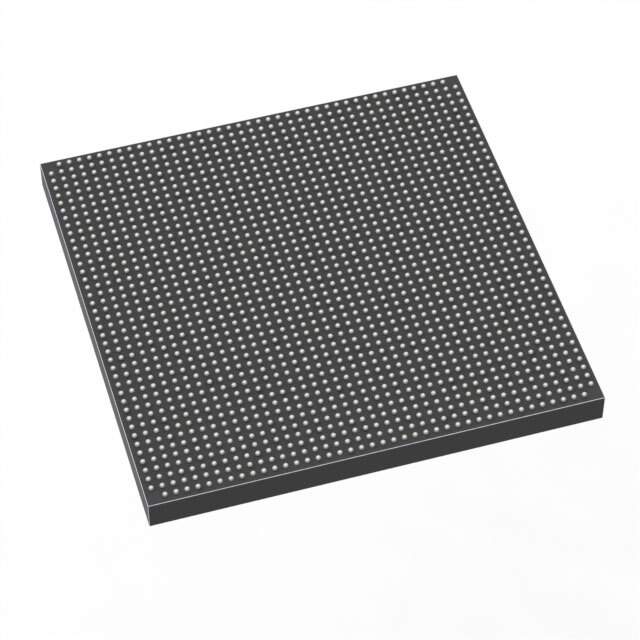

EP4SE820F43C3N Real Image
Same model may have multiple batches, images only for reference.

EP4SE820F43C3N

Part No EP4SE820F43C3N
Manufacturer Altera
Catalog Embedded - FPGAs (Field Programmable Gate Array)
Description IC FPGA 1120 I/O 1760FBGA / FPGA Stratix® IV E Family 813050 Cells 40nm Technology 0.9V 1760-Pin FC-FBGA
Datasheet
EP4SE820F43C3N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series STRATIX IV E
Number of LABs/CLBs 32522
Number of Logic Elements/Cells 813050
Total RAM Bits 34093056
Number of I/O 1120
Operating Supply Voltage 0.87 V ~ 0.93 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 1760-BBGA, FCBGA
Manufacturer Package 1760-FCBGA (42.5x42.5)
Win Source Part Number 773983-EP4SE820F43C3N
Popularity Medium
Supply and Demand Status Limited
Family Name EP4SE820
ECCN 3A001.a.7.a
Country of Origin Republic of Korea
Estimated EOL Date 2021
Ultra Librarian 3D Model Ultra Librarian EP4SE820F43C3N CAD Model

Description

The Altera STRATIX IV E 773983-EP4SE820F43C3N is a high-performance FPGA that is ideal for applications that require high bandwidth and low power consumption.

  • I/Os: 1120
  • LABs/CLBs: 32522
  • Logic Elements/Cells: 813050
  • Total RAM: 34093056 bits
  • Operating Supply Voltage: 0.87 V to 0.93 V
  • Operating Temperature: 0°C to 85°C (TJ)
  • Package: 1760-BBGA, FCBGA
  • Mounting: SMD
