The EP4CGX30CF23C8N is a member of the Cyclone IV GX family of Field Programmable Gate Arrays (FPGAs) from Altera (now Intel). These FPGAs are designed to provide a low-cost, low-power solution for a wide range of applications. The Cyclone IV GX family incorporates transceivers for high-speed serial connectivity, making them suitable for applications requiring data transfer rates of several gigabits per second.

Applications

• Motor Control
• Video Processing
• Industrial Automation
• Test and Measurement Equipment
• Communication Systems
• Medical Imaging
• Automotive Systems

Features

• 30,000 Logic Elements (LEs): Provides a significant amount of programmable logic for implementing complex digital circuits.
• Embedded Transceivers: Supports high-speed serial communication protocols like PCI Express, Gigabit Ethernet, and CPRI.
• Low Power Consumption: Optimized for power-sensitive applications.
• Embedded Memory Blocks: Includes on-chip memory for data storage and processing.
• DSP Blocks: Contains dedicated digital signal processing blocks for efficient signal processing algorithms.
• Flexible I/O Interface: Supports a variety of I/O standards and voltages.
• Fine-Grain Architecture: Enables efficient utilization of logic resources.
• Clock Management: Provides flexible clock generation and distribution capabilities.
• Configuration Options: Supports various configuration methods, including JTAG and external memory.

Benefits

• Cost-Effective Solution: Provides a low-cost FPGA solution for a wide range of applications.
• High Performance: Delivers high performance with its logic elements, transceivers, and DSP blocks.
• Low Power Consumption: Reduces power consumption, making it suitable for portable and battery-powered devices.
• Design Flexibility: Allows designers to implement custom logic functions and adapt to changing requirements.
• Faster Time-to-Market: Enables rapid prototyping and development of custom hardware solutions.
• Integration: Allows the integration of multiple functions into a single device, reducing board space and cost.

Additional Details

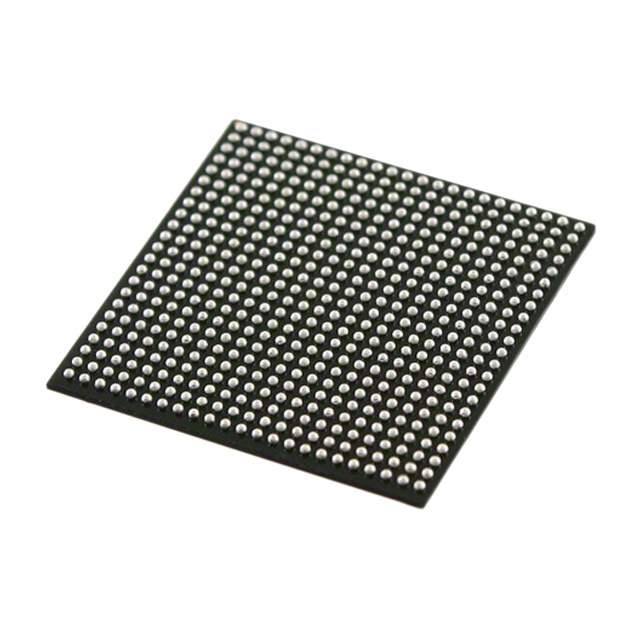

The EP4CGX30CF23C8N is packaged in a 239-pin FineLine BGA (FBGA) package. The 'C8' in the part number indicates the speed grade. The FPGA is configured using an external configuration device or via JTAG. The transceivers typically support data rates up to 3.125 Gbps. The device supports various memory interfaces, including DDR2 and DDR3. The operating temperature range is typically 0°C to 85°C. Altera's Quartus Prime software is used for design entry, simulation, and synthesis. The software provides tools for place and route, timing analysis, and power analysis. Example applications include video processing, image processing, and high-speed data acquisition. The FPGA is commonly used in industrial control systems, communication equipment, and medical devices.

The Cyclone IV GX family provides a versatile platform for implementing a wide range of custom hardware solutions. The EP4CGX30CF23C8N offers a balance of performance, cost, and power consumption, making it an ideal choice for many applications.
