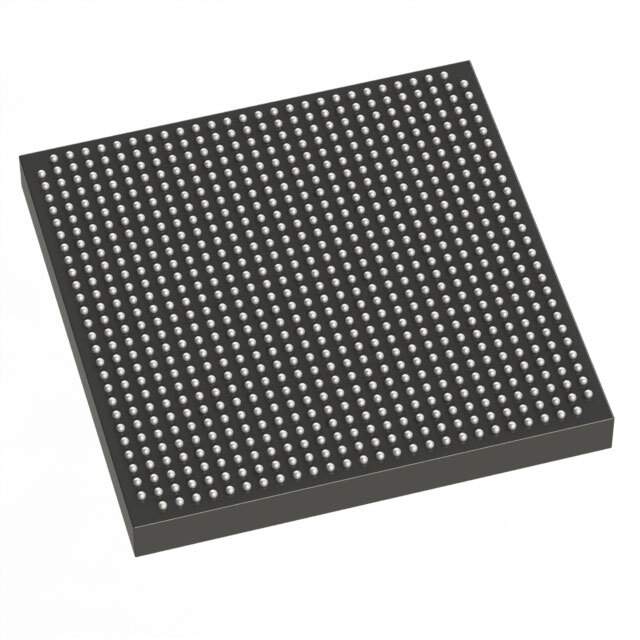

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix III L
Number of LABs/CLBs 2700
Number of Logic Elements/Cells 67500
Total RAM Bits 2699264
Number of I/O 488
Operating Supply Voltage 0.86 V ~ 1.15 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 780-BBGA, FCBGA
Manufacturer Package 780-FBGA (29x29)
Win Source Part Number 773962-EP3SL70F780C2N
Popularity Medium
Supply and Demand Status Limited
Family Name EP3SL70
Introduction Date November 01, 2006
ECCN 3A991
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EP3SL70F780C2N CAD Model

Description

The Altera Stratix III L series EP3SL70F780C2N is an IC with 488 I/O pins, 2700 LABs/CLBs, 67500 logic elements/cells, and 2699264 bits of total RAM.

  • Supply Voltage: 0.86 V to 1.15 V
  • Package: 780-BBGA or FCBGA
  • Mounting: Surface-mounted
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Category: Integrated circuits (ICs)
  • ECCN: 3A991
