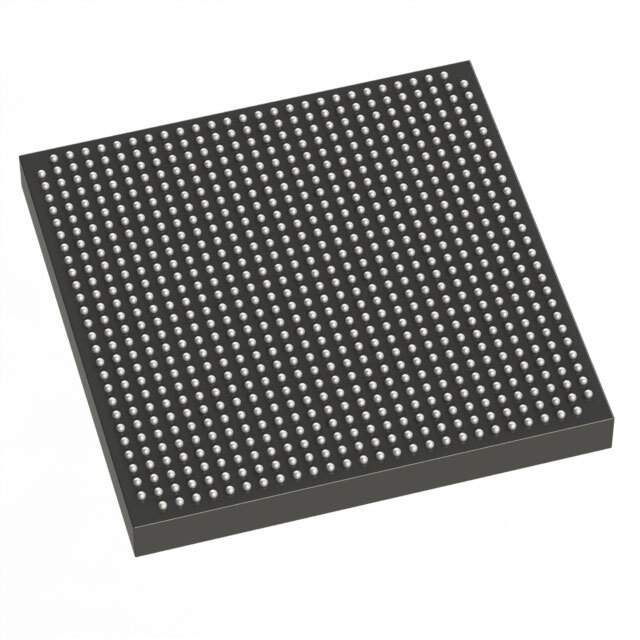

EP3SE50F780C4N Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Altera
Series Stratix III E
Number of LABs/CLBs 1900
Number of Logic Elements/Cells 47500
Total RAM Bits 5760000
Number of I/O 488
Operating Supply Voltage 0.86 V ~ 1.15 V
Mounting SMD
Operating Temperature Range 0°C ~ 85°C (TJ)
Package 780-BBGA, FCBGA
Manufacturer Package 780-FBGA (29x29)
Win Source Part Number 773952-EP3SE50F780C4N
Popularity Medium
Supply and Demand Status Limited
Family Name EP3SE50
Introduction Date November 01, 2006
ECCN 3A991
Country of Origin Republic of Korea
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian EP3SE50F780C4N CAD Model

Description

The Altera EP3SE50F780C4N is a Stratix III E series IC with 488 I/O ports, 1900 LABs/CLBs, 47,500 logic elements/cells, and 5,760,000 total RAM bits.

  • Supply Voltage: 0.86 V to 1.15 V
  • Package: 780-ball fine-pitch ball grid array (FCBGA)
  • Mounting: Surface-mounted
  • Status: Obsolete/EOL
  • Supply and Demand Status: Limited
