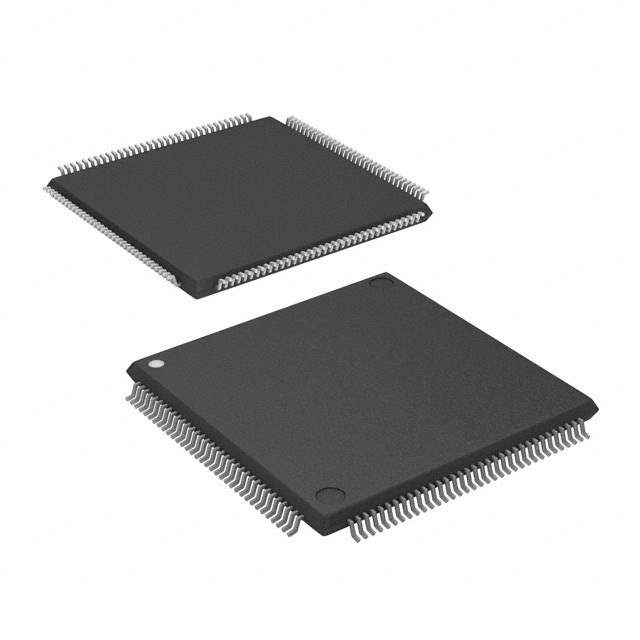

The EP20K100ETC144-3 is a Field Programmable Gate Array (FPGA) from Altera's APEX II family. This FPGA is designed for flexible, high-performance logic integration in a variety of applications. The device is housed in a 144-pin TQFP (Thin Quad Flat Pack) package.
Applications
- Data communication: Applications include SONET/SDH and Gigabit Ethernet implementation.
- Image Processing: Utilized in video processing equipment for real-time analysis and enhancement.
- Industrial Control Systems: Employed for precise control and monitoring of industrial processes.
- Automotive electronics: Can be used in advanced driver-assistance systems (ADAS).
- Medical equipment: Used in medical imaging and diagnostic devices.
Features
- Embedded memory: Provides on-chip RAM blocks for data storage and manipulation.
- High I/O count: Offers a large number of programmable input/output pins for flexible interfacing.
- System-level integration: Allows for the integration of multiple functions into a single chip.
- Advanced clock management: Provides flexible clock generation and distribution for optimal performance.
- 144-Pin TQFP Package: Compact package allows for easy integration.
Benefits
- Design flexibility: Allows for customization of hardware functions to meet specific application requirements.
- Reduced system cost: Integration of multiple functions reduces the need for external components.
- Faster time-to-market: Programmability enables rapid prototyping and design iterations.
- Improved performance: High-speed logic and efficient memory architecture enhance system performance.
Additional Details
The EP20K100ETC144-3 operates on a specific voltage level, please refer to the product datasheet for accurate voltage requirements. The FPGA's configuration is volatile, requiring an external configuration device. Altera's Quartus software supports design and programming. Device has on-chip phase-locked loops (PLLs). PLLs are used to generate and manage clock signals, which are essential for high-speed operation. The device supports various memory interfaces, including SDRAM and SRAM. The device also has specialized logic elements for implementing complex arithmetic functions. These elements can be used to perform high-speed multiplication and division operations. Be sure to consult the datasheet for the most accurate and up-to-date information.
