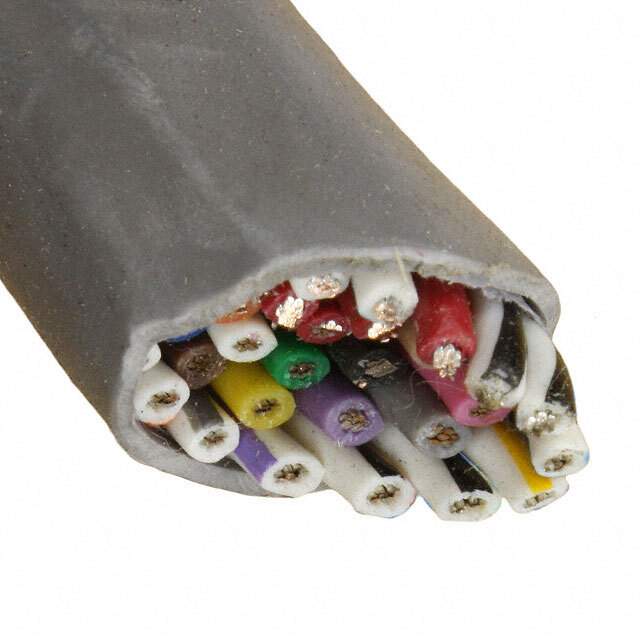

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Conductor
Number of Conductors 30
Wire Gauge 24 AWG
Conductor Strand 7/32
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.353" (8.97mm)
Shield Type Foil
Length 1000.0' (304.8m)
Jacket Color Slate
Ratings UL Style 2464
Features Drain Wire, Rip Cord
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Jacket (Insulation) Thickness 0.0320" (0.813mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number M4616
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names M4616 SL001-ND,M4616SL001
Standard Package 1
Win Source Part Number 1078736-M4616 SL001
Ultra Librarian 3D Model Ultra Librarian M4616 SL001 CAD Model

Description

The 1078736-M4616 SL001 is a multi-conductor cable from Alpha Wire with a wire gauge of 24 AWG.

  • Package: Spool
  • Length: 1000.0' (304.8m)
  • Cable Type: Multi-Conductor
  • Jacket (Insulation) Material: Poly-Vinyl Chloride (PVC)
  • Jacket Thickness: 0.0320" (0.813mm)
  • Temperature Range: -20°C ~ 80°C
  • UL Style: 2464
  • Conductor Material: Copper, tinned
  • Jacket Color: Slate
