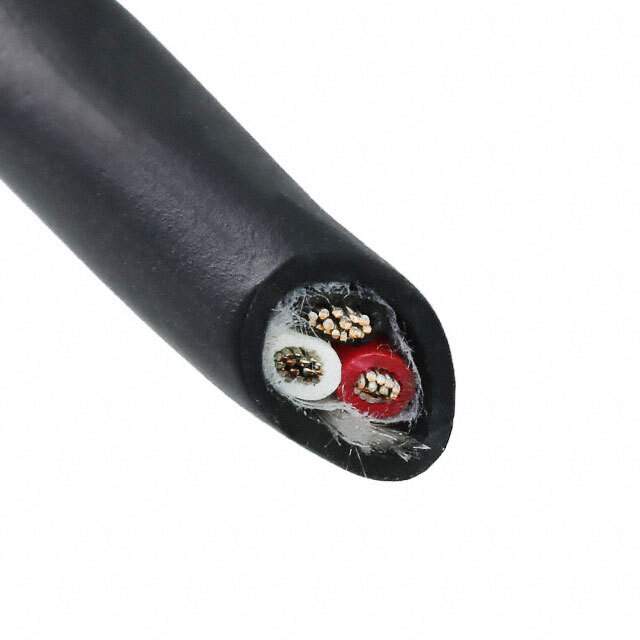

25063 BK005 Real Image
Same model may have multiple batches, images only for reference.

25063 BK005

Part No 25063 BK005
Manufacturer Alpha Wire
Catalog Multiple Conductor Cables
Description CABLE 3COND 18AWG BLACK 100' / 3 Conductor Multi-Conductor Cable Black 18 AWG 100.0' (30.5m)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Series Xtra-Guard® 2
Package Spool
Cable Type Multi-Conductor
Number of Conductors 3
Wire Gauge 18 AWG
Conductor Strand 16/30
Conductor Material Copper, Tinned
Jacket (Insulation) Material Polyurethane (PU)
Jacket (Insulation) Diameter 0.238" (6.05mm)
Length 100.0' (30.5m)
Jacket Color Black
Ratings ISO 10993, UL Style 20668
Features Biological Compatibility, Rip Cord
Voltage 300 V
Temperature Range - Operating -30°C ~ 90°C
Jacket (Insulation) Thickness 0.0320" (0.813mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Base Product Number 25063
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 25063 BK005-ND,25063BK005
Standard Package 1
Win Source Part Number 1200721-25063 BK005
Ultra Librarian 3D Model Ultra Librarian 25063 BK005 CAD Model

Description

The Alpha Wire 1200721-25063 BK005 is a multi-conductor cable with 3 conductors and a wire gauge of 18 AWG.

  • Conductors: 3
  • Wire Gauge: 18 AWG
  • Length: 100.0' (30.5m)
  • Voltage Rating: 300V
  • Ratings: ISO 10993 and UL Style 20668
  • Jacket Color: Black
  • Jacket Insulation: Polyurethane (PU)
  • Conductor Material: Copper, tinned
  • Temperature Range: -30°C to 90°C
