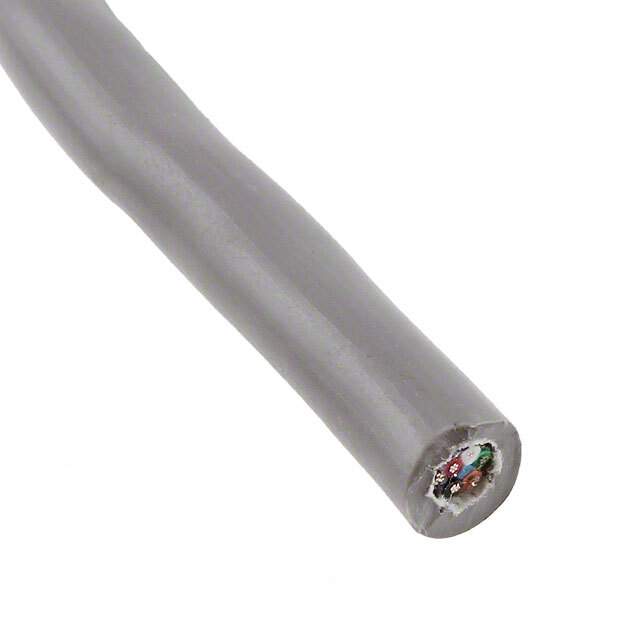

1012405 SL199 Real Image
Same model may have multiple batches, images only for reference.

1012405 SL199

Part No 1012405 SL199
Manufacturer Alpha Wire
Catalog Multiple Conductor Cables
Description 1012405 SLATE 3000 = 3000 FT  /  5 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
Datasheet
1012405 SL199 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cables, Wires>Multiple Conductor Cables
Mfr Alpha Wire
Package Spool
Cable Type Multi-Conductor
Number of Conductors 5
Wire Gauge 24 AWG
Conductor Strand 7/32
Conductor Material Copper, Tinned
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter 0.190" (4.83mm)
Shield Type Foil
Length 1000.0' (304.8m)
Jacket Color Slate
Features Drain Wire
Voltage 300 V
Temperature Range - Operating -20°C ~ 80°C
Usage Computer
Jacket (Insulation) Thickness 0.0350" (0.889mm)
Conductor Insulation Poly-Vinyl Chloride (PVC)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number 1012405
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.49.3080
Other Names 1012405 SL199-ND,1012405SL199
Standard Package 1,000
Win Source Part Number 1034213-1012405 SL199
Ultra Librarian 3D Model Ultra Librarian 1012405 SL199 CAD Model

Description

The 1012405 SL199 is a multi-conductor cable manufactured by Alpha Wire.

  • Wire Gauge: 24 AWG
  • Conductors: 5
  • Length: 1000.0' (304.8m)
  • Cable Type: multi-conductor
  • Shield Coverage: 100%
  • Voltage Rating: 300V
  • Temperature Range: -20°C ~ 80°C
  • Jacket Color: slate
  • Shield Type: foil
