The AOZ8811DI is a Transient Voltage Suppressor (TVS) diode from Alpha & Omega Semiconductor designed to protect sensitive electronic components from voltage transients, particularly electrostatic discharge (ESD). It is engineered to provide a fast response and low clamping voltage, ensuring reliable protection for data lines and power lines in a variety of applications. This TVS diode is commonly used to enhance the robustness and longevity of electronic devices by safeguarding them against damaging voltage surges.

Applications:

• USB Ports
• HDMI Ports
• Ethernet Ports
• Data Line Protection
• Power Line Protection
• Portable Devices

Features:

• Low Clamping Voltage: Minimizes the voltage stress on protected components during a transient event.
• Fast Response Time: Quickly responds to transient events, ensuring effective protection.
• Low Capacitance: Reduces signal distortion in high-speed data lines.
• ESD Protection: Robust protection against electrostatic discharge.
• Small Package: Allows for easy integration into compact designs.
• RoHS Compliant: Complies with environmental regulations regarding hazardous substances.

Benefits:

• Increased System Reliability: Protects sensitive electronics from damage due to voltage transients.
• Reduced Downtime: Prevents failures caused by ESD and voltage surges.
• Extended Product Lifespan: Enhances the durability and operational life of electronic devices.
• Maintained Signal Integrity: Low capacitance ensures signal quality in high-speed applications.
• Simplified Design: Easy to incorporate into various circuit designs.

Additional Details:

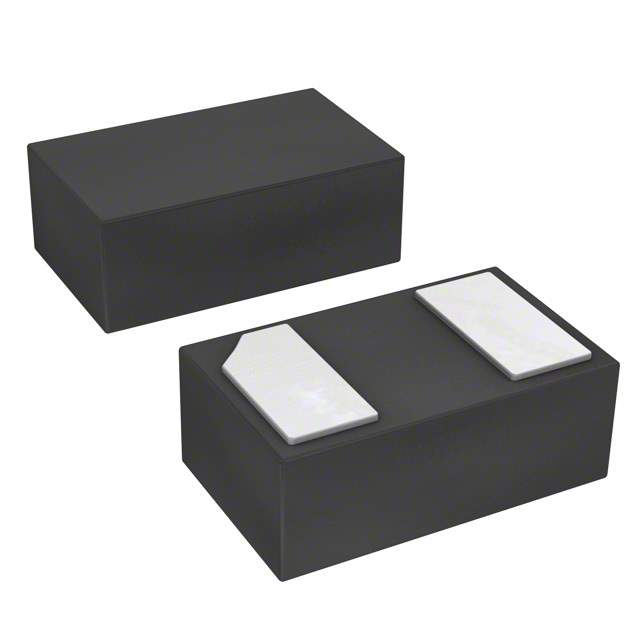

The AOZ8811DI is typically available in surface-mount packages, such as DFN (Dual Flat No-Lead) or similar compact packages. Essential parameters include breakdown voltage, clamping voltage, and peak pulse current, which should be carefully considered when selecting the device for a specific application. Operating the device within its specified temperature range is critical for reliable performance. This TVS diode offers a cost-effective solution for protecting sensitive electronic circuits from transient voltage events, ensuring more robust and reliable operation. Proper placement, close to input/output connectors or vulnerable components, is recommended for optimal protection. Furthermore, good PCB layout practices can help to minimize inductance and maximize the effectiveness of the ESD protection.
