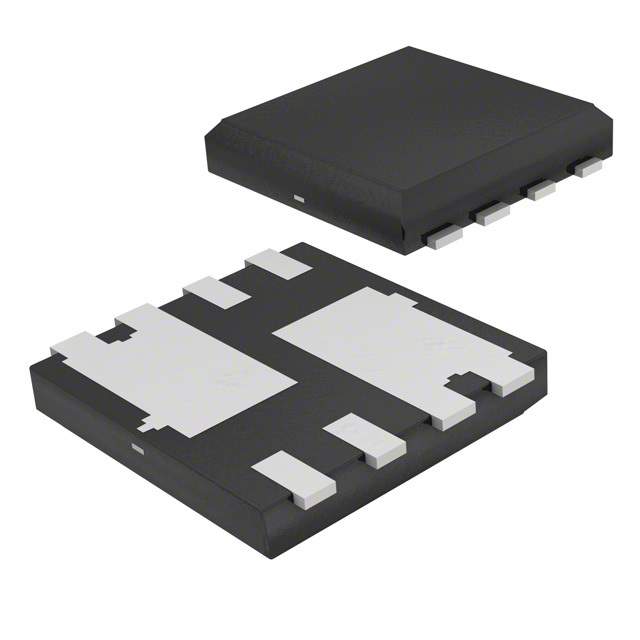

AON7810

Name: AON7810
Brand: Alpha & Omega Semiconductor Inc.
SKU: 1129696
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AON7810
Manufacturer	Alpha & Omega Semiconductor Inc.
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET 2N-CH 30V 6A 8DFN / Mosfet Array 2 N-Channel (Dual) 30V 6A 3.1W Surface Mount 8-DFN (3x3)
Datasheet	AON7810 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr	Alpha & Omega Semiconductor Inc.
Package	Tape & Reel
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	6A
Rds On (Max) @ Id, Vgs	14mOhm @ 6A, 10V
Vgs(th) (Max) @ Id	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	542pF @ 15V
Power - Max	3.1W
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting	SMD (SMT)
Package / Case	8-PowerSMD, Flat Leads
Supplier Device Package	8-DFN (3x3)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Other Names	785-1775-6,785-1775-1,785-1775-2,AON7810-ND
Standard Package	5,000
Win Source Part Number	1129696-AON7810
Ultra Librarian 3D Model	Ultra Librarian AON7810 CAD Model

Description

The AON7810 is a Dual N-Channel FET that is designed for use in discrete semiconductor products.

FET Type: Logic Level Gate
Vdss: 30V
Id @ 25°C: 6A
Rds On (Max) @ Id, Vgs: 14mOhm @ 6A, 10V
Vgs(th) (Max) @ Id: 2.3V @ 250μA
Power - Max: 3.1W
Package: 8-PowerSMD, Flat Leads
Qg (Max) @ Vgs: 12.2nC @ 10V
Ciss (Max) @ Vds: 542pF @ 15V
Manufacturer: Alpha & Omega Semiconductor Inc.
