The AON7242 is a MOSFET technology discrete semiconductor product manufactured by Alpha & Omega Semiconductor Inc. with a current - continuous drain (Id) @ 25°C of 30A (Ta), 50A (Tc).

• Packaging: reel - TR
• Operating Temperature Range: -55°C ~ 150°C (TJ)
• Mounting Type: SMD

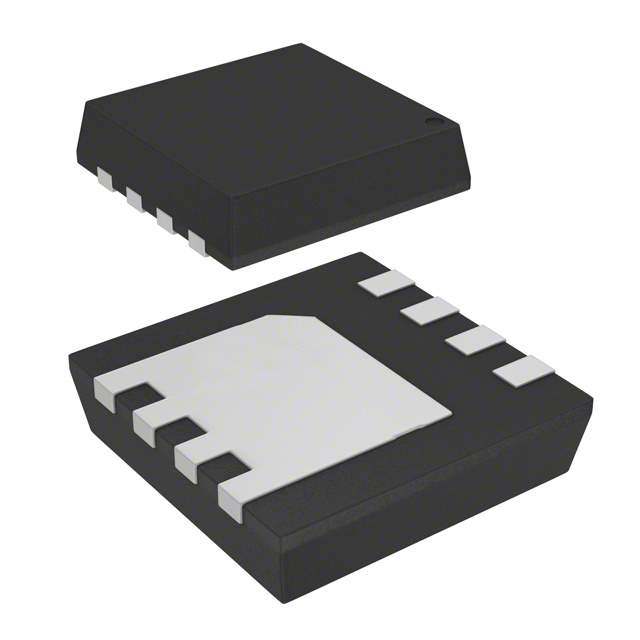

• Package: 8-PowerWDFN
• Manufacturer Package: 8-DFN-EP (3.3x3.3)
• Channel Type: N
• Drain Source Voltage: 40V
• Vgs(th) (Maximum) @ Id: 2.3V @ 250μA
• Gate Charge (Qg) (Maximum) @ Vgs: 32nC @ 10V
• Input Capacitance (Ciss) (Maximum) @ Vds: 2365pF @ 20V
• Vgs (Maximum): ±20V
• Power Dissipation (Maximum): 6.2W (Ta), 83W (Tc)
• Rds On (Maximum) @ Id, Vgs: 3.9 mOhm @ 20A, 10V
• Alternative Parts (Cross-Reference): IPZ40N04S5-3R1, IPZ40N04S53R1ATMA1, and IPZ40N04S5L2R8ATMA1
• ECCN: EAR99
• Country of Origin: China
• Estimated EOL Date: obsolete
• Halogen-Free Standards: compliant
• Supply and Demand Status: balanced
