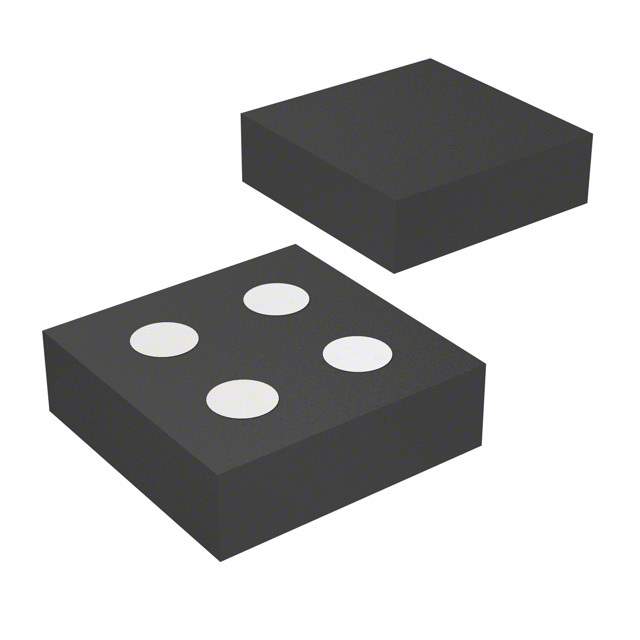

AOC2804 Real Image1 AOC2804 Real Image2
Same model may have multiple batches, images only for reference.
AOC2804 Real Image1 AOC2804 Real Image2
AOC2804 Real Image1 AOC2804 Real Image2
Same model may have multiple batches, images only for reference.

AOC2804

Part No AOC2804
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog FETs - Arrays
Description MOSFET 2N-CH / Mosfet Array 700mW Surface Mount 4-DFN (1.5x1.5)
Datasheet
AOC2804 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors>FETs, MOSFETs>FET, MOSFET Arrays
Mfr Alpha & Omega Semiconductor Inc.
Series AlphaMOS
Package Tape & Reel
Product Status Obsolete
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel (Dual) Common Drain
FET Feature -
Drain to Source Voltage (Vdss) -
Current - Continuous Drain (Id) @ 25°C -
Rds On (Max) @ Id, Vgs -
Vgs(th) (Max) @ Id -
Gate Charge (Qg) (Max) @ Vgs 9.5nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds -
Power - Max 700mW
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-XDFN
Supplier Device Package 4-DFN (1.5x1.5)
Base Product Number AOC280
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Standard Package 3,000 pcs
Win Source Part Number 1381399-AOC2804
Ultra Librarian 3D Model Ultra Librarian AOC2804 CAD Model

Description

The 1381399-AOC2804 is a MOSFET array from the AlphaMOS series from Alpha & Omega Semiconductor Inc..

  • Series: AlphaMOS
  • Mounting Type: Surface Mount
  • Package / Case: Tape & Reel
  • Configuration: 2 N-Channel Common Drain
  • Power - Max: 700mW
  • Operating Temperature: -55°C~150°C
  • Gate Charge: 9.5nC @ 4.5V
  • Package: 4-XDFN
