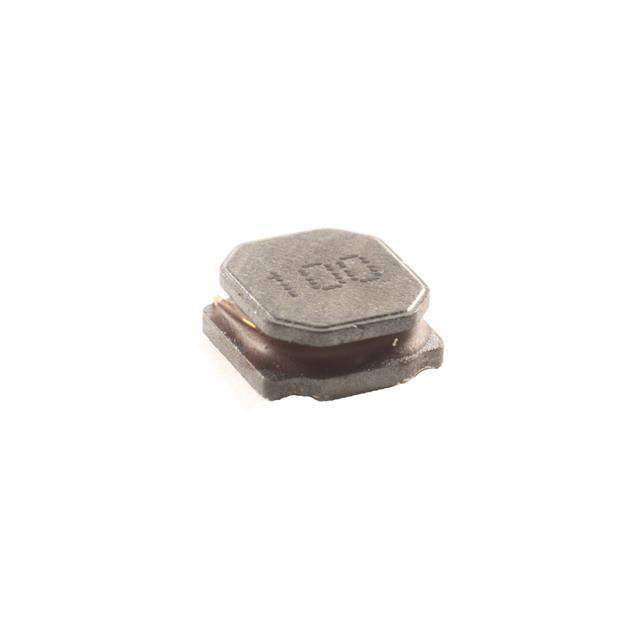

Same model may have multiple batches, images only for reference.

PCSV48-2R2M-RC

Get a Quote

Part No	PCSV48-2R2M-RC
Manufacturer	Allied Components International
Catalog	Fixed Inductors
Description	2.2UH 20% SHIELDED POWER CHIP I / 2.2 µH Shielded Wirewound Inductor 2.5 A 60mOhm Nonstandard
Datasheet	PCSV48-2R2M-RC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Allied Components International
Series	PCSV48
Package	Tape & Reel
Type	Wirewound
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	2.5 A
Current - Saturation (Isat)	2.8A
Shielding	Shielded
DC Resistance (DCR)	60mOhm
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max)	0.079" (2.00mm)
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH info available upon request
Win Source Part Number	1351971-PCSV48-2R2M-RC
Ultra Librarian 3D Model	Ultra Librarian PCSV48-2R2M-RC CAD Model

Alternative Products

Description

The PCSV48-2R2M-RC is a wirewound inductor manufactured by Allied Components International.

Type: Wirewound, Shielded
Packaging: Tape and Reel
Size/Dimension: 0.157" L x 0.157" W (4.00mm x 4.00mm)
Inductance: 2.2 µH
Seated Height: 0.079" (2.00mm)
Tolerance: ±20%
DC Resistance (DCR): 60mOhm
Current Rating: 2.5A
Package/Case: Nonstandard
Temperature Range: -40°C ~ 105°C
Category: Inductors, Coils, Chokes - Fixed Inductors
