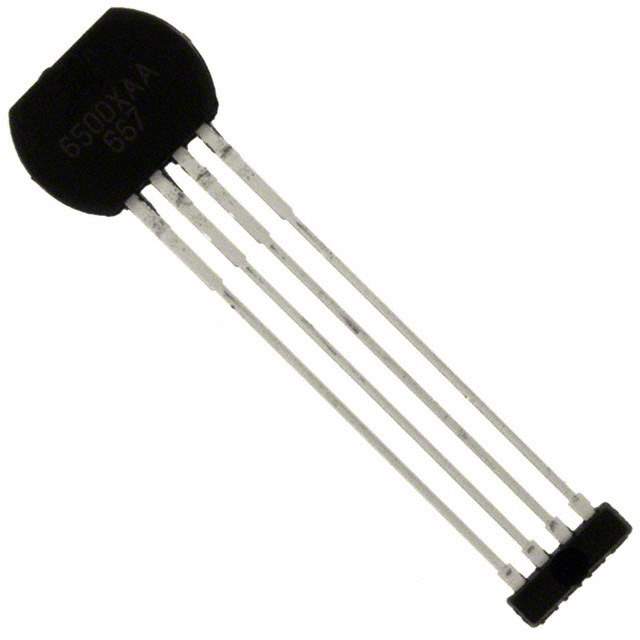

ATS617LSGTN-T Real Image
Same model may have multiple batches, images only for reference.

ATS617LSGTN-T

Part No ATS617LSGTN-T
Manufacturer Allegro MicroSystems, LLC
Catalog Magnetic Sensors - Switches (Solid State)
Description Dynamic, Self-Calibrating, Peak-Detecting, Differential Hall Effect Gear Tooth Sensor IC
Datasheet
ATS617LSGTN-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Allegro MicroSystems, LLC
Packaging Reel - TR
Function Special Purpose
Technology Hall Effect
Operating Supply Voltage 4.5 V ~ 24 V
Maximum Supply Current 12mA
Current - Output (Maximum) 25mA
Output Type Open Collector
Features Temperature Compensated
Operating Temperature Range -40°C ~ 150°C (TA)
Package 4-SSIP
Manufacturer Package 4-SIP
Win Source Part Number 1149529-ATS617LSGTN-T
Manufacturer Homepage www.allegromicro.com
Popularity Medium
Supply and Demand Status Limited
Family Name ATS617LSG
Introduction Date March 21, 2009
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian ATS617LSGTN-T CAD Model

Description

It has a limited supply and demand status.

  • Win Source Part Number: 1149529-ATS617LSGTN-T
  • Manufacturer Homepage: www.allegromicro.com
  • Technology: Temperature compensated Hall Effect
  • Output Type: Open Collector
  • Current Output: 25mA
  • Maximum Supply Current: 12mA
