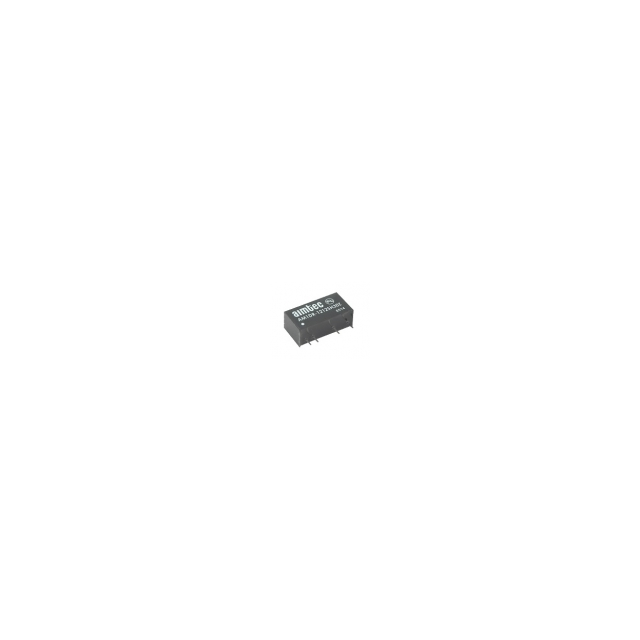

AM1DR-0505SZ Real Image
Same model may have multiple batches, images only for reference.

AM1DR-0505SZ

Part No AM1DR-0505SZ
Manufacturer AIMTEC
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5 ~ 5V 200mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr aimtec
Series AM1DR-Z (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Efficiency 68%
Mounting Type Through Hole
Dimension 0.76" L x 0.28" W x 0.39" H (19.5mm x 7.2mm x 10.0mm)
Approval Agency CE
Base Product Number AM1DR
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 2721-AM1DR-0505SZ
Standard Package 20
Win Source Part Number 1226938-AM1DR-0505SZ
Ultra Librarian 3D Model Ultra Librarian AM1DR-0505SZ CAD Model

Description

The AM1DR-0505SZ is an isolated DC-DC converter module that is designed for use in various applications such as commercial ITE devices.

  • Power Output: 1 W
  • Efficiency: 68%
  • Voltage Range: 4.5 V to 5.5 V
  • Voltage Isolation: 1 kV
  • Market Status: balanced supply and demand status
  • Recommendation: recommended to use it with caution to avoid fake products.
