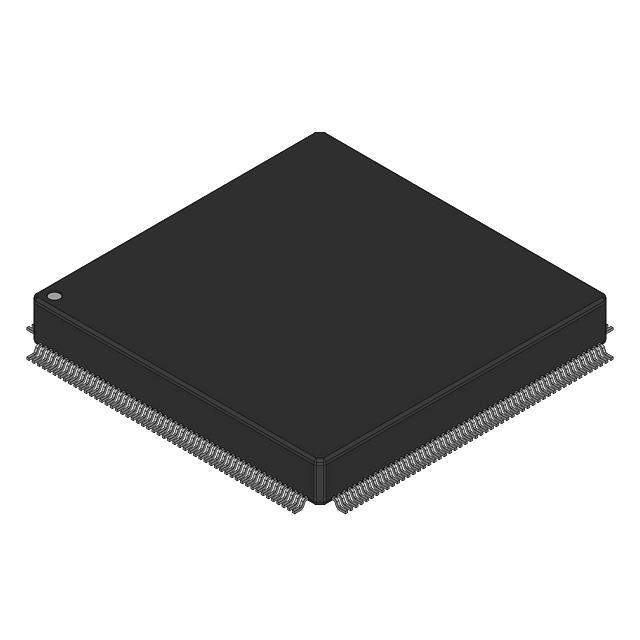

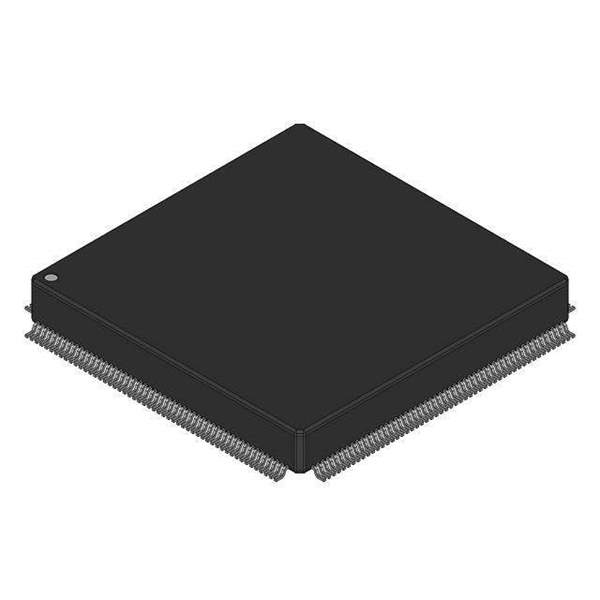

Overview of NXP MCF5307CAI90B

The NXP MCF5307CAI90B is a robust integrated microprocessor that is part of the MCF5307 family, designed to offer a balanced performance for embedded control applications. This product is built around the ColdFire V3 core, which is known for its high-performance RISC architecture, making it a perfect fit for a wide range of industrial, networking, and consumer applications where efficiency and reliability are critical.

Key Features

• Clock Speed: The MCF5307CAI90B operates at a clock speed of 90 MHz, providing a solid balance between power consumption and processing capability.
• Integrated Memory Management: This microprocessor comes with a Memory Management Unit (MMU) that supports both paged and protection memory architectures, enhancing the system's reliability and security.
• Cache Memory: It includes an 8 KB instruction cache and an 8 KB data cache, which help in optimizing the system performance by reducing the time taken to access frequently used data and instructions.
• On-Chip Peripherals: The MCF5307CAI90B is equipped with a variety of on-chip peripherals, including UART, DMA, timers, and more, which simplify design and reduce the need for additional components.
• System Integration: With its integrated DRAM controller, this microprocessor allows for direct connection to DRAM memory, thereby streamlining system design and enhancing performance.

Applications

The versatility of the MCF5307CAI90B makes it suitable for a wide array of applications, including but not limited to:

• Industrial Control Systems
• Networking Equipment
• Medical Devices
• Automotive Control Units
• Consumer Electronics

Reliability and Support

NXP is known for its commitment to quality and long-term reliability. The MCF5307CAI90B is backed by NXP's comprehensive technical support and documentation, ensuring that designers and engineers have access to the resources they need to successfully integrate this microprocessor into their projects.

In summary, the NXP MCF5307CAI90B microprocessor is a powerful and versatile component that offers a high level of integration, making it an excellent choice for a broad range of embedded applications where efficiency and dependability are paramount.
