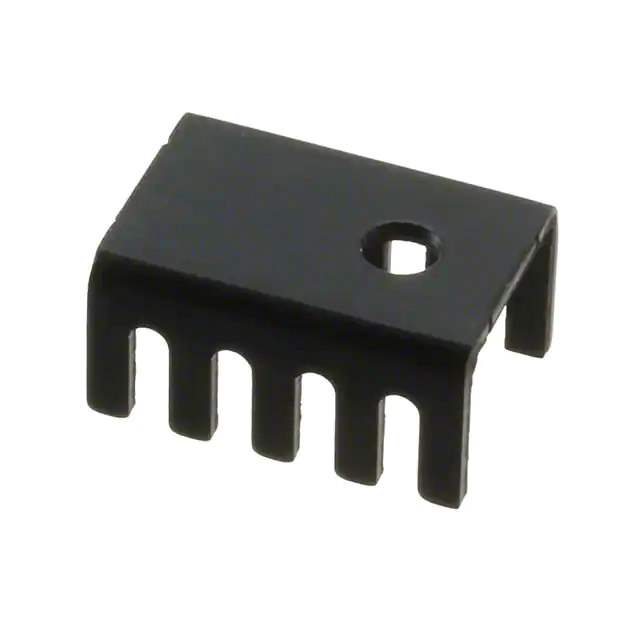

ATS-PCB1070 Real Image
Same model may have multiple batches, images only for reference.

ATS-PCB1070

Part No ATS-PCB1070
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK TO-220 BLACK
Datasheet
ATS-PCB1070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Package Bulk
Product Status Active
Type Board Level
Package Cooled TO-220
Attachment Method Bolt On
Shape Rectangular, Fins
Length 0.750" (19.05mm)
Width 0.520" (13.21mm)
Fin Height 0.375" (9.52mm)
Thermal Resistance @ Forced Air Flow 15.80°C/W @ 200 LFM
Thermal Resistance @ Natural 25.90°C/W
Material Aluminum
Material Finish Black Anodized
Base Product Number ATS-PCB
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 865859-ATS-PCB1070
Ultra Librarian 3D Model Ultra Librarian ATS-PCB1070 CAD Model

Description

The ATS-PCB1070 is a board level heat sink designed for thermal management in electronic components.

  • Win Source Part Number: 865859-ATS-PCB1070
  • Length: 0.750" (19.05mm)
  • Width: 0.520" (13.21mm)
  • Material: Aluminum
  • Shape: Rectangular, Fins
  • For Use With/Related Products: TO-220
  • Attachment Method: Bolt-On
  • Thermal Resistance @ Forced Air Flow: 15.80°C/W @ 200 LFM
  • Thermal Resistance @ Natural: 25.90°C/W
  • Finish: Black Anodized
  • Product Status: Active
  • Fin Height: 0.375" (9.52mm)
