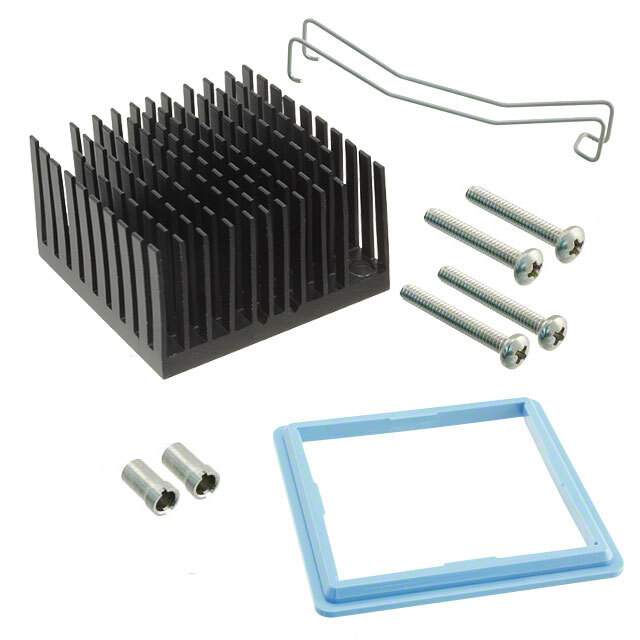

ATS-61450W-C2-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-61450W-C2-R0

Part No ATS-61450W-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description MAXIGRIP FANSINK 45X45X24.5MM / Heat Sink BGA Aluminum Top Mount
Datasheet
ATS-61450W-C2-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series fanSINK, maxiGRIP
Package Bulk
Type Top Mount
Package Cooled BGA
Attachment Method Clip, Thermal Material
Shape Square, Pin Fins
Length 1.772" (45.00mm)
Width 1.772" (45.00mm)
Fin Height 0.965" (24.50mm)
Thermal Resistance @ Forced Air Flow 1.10°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Base Product Number ATS-614
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS2598
Standard Package 100
Win Source Part Number 1113175-ATS-61450W-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-61450W-C2-R0 CAD Model

Description

The Advanced Thermal Solutions Inc. 1113175-ATS-61450W-C2-R0 fanSINK is a top mount heat sink designed for use in thermal management applications.

  • Mounting Type: Top Mount
  • Shape: Square, Pin Fins
  • Material: Aluminum
  • Package Cooled: BGA
  • Attachment Method: Clip, Thermal Material
  • Width: 1.772 inches (45.00mm)
  • Length: 1.772 inches (45.00mm)
  • Fin Height: 0.965 inches (24.50mm)
  • Thermal Resistance: 1.10°C/W @ 200 LFM
  • Finish: Black Anodized
  • REACH: Unaffected
