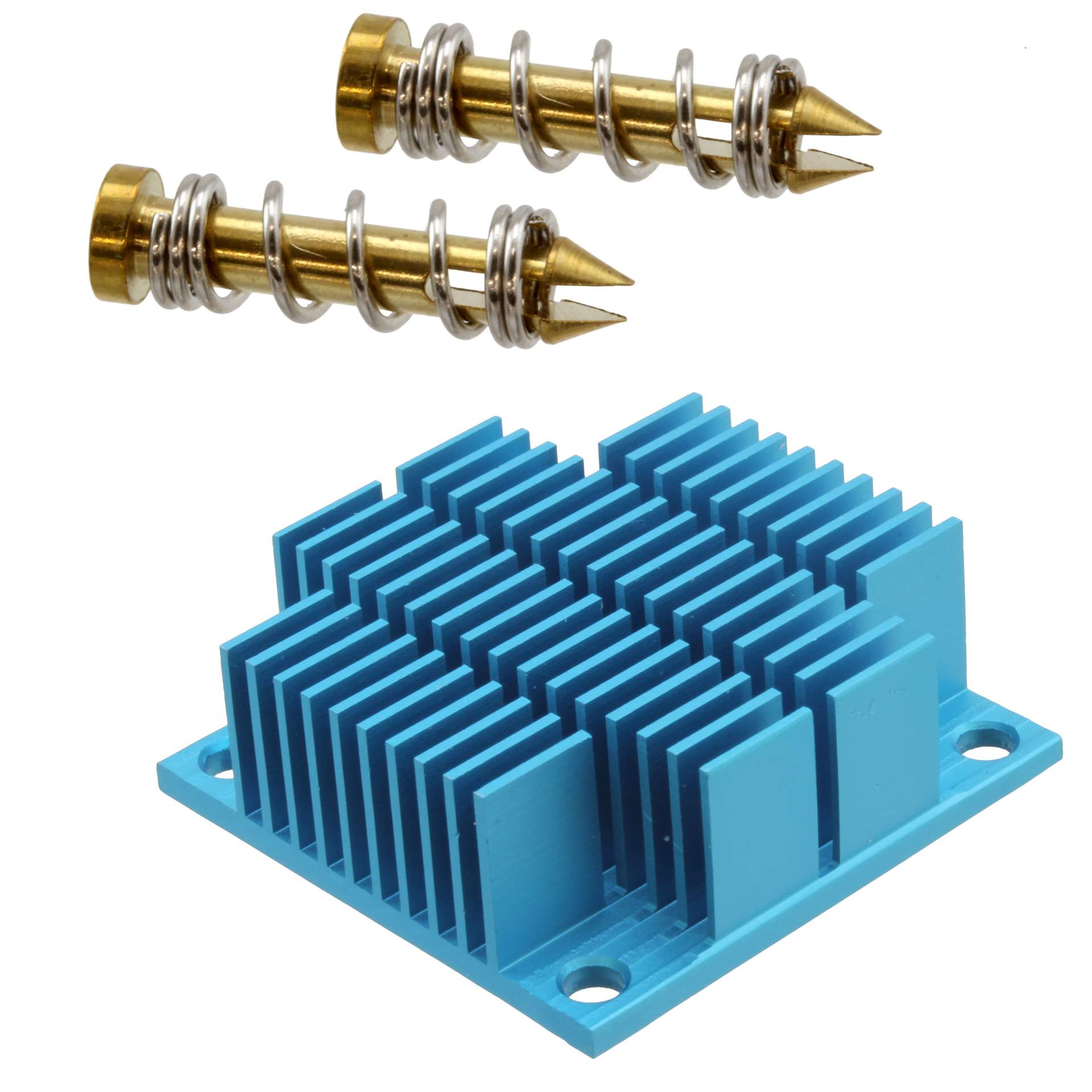

ATS-02H-74-C2-R0

Part No ATS-02H-74-C2-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 25X25X15MM R-TAB T766 / Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal>Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Series pushPIN™
Package Tray
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Square, Fins
Length 0.984" (25.00mm)
Width 0.984" (25.00mm)
Diameter -
Fin Height 0.590" (15.00mm)
Power Dissipation @ Temperature Rise -
Thermal Resistance @ Forced Air Flow 20.35°C/W @ 100 LFM
Thermal Resistance @ Natural -
Material Aluminum
Material Finish Blue Anodized
Base Product Number ATS-02H
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Standard Package 50 pcs
Win Source Part Number 1383373-ATS-02H-74-C2-R0
Ultra Librarian 3D Model Ultra Librarian ATS-02H-74-C2-R0 CAD Model

Description

The ATS-02H-74-C2-R0 is another pushPIN™ heat sink from Advanced Thermal Solutions Inc.

  • Type: Top Mount
  • Package Cooled: BGA, LGA, CPU, ASIC
  • Attachment Method: Push Pin
  • Shape: Square, Fins
  • Length: 0.984" (25.00mm)
  • Width: 0.984" (25.00mm)
  • Thermal Resistance @ Forced Air Flow: 20.35°C/W @ 100 LFM
  • Material: Aluminum
  • Finish: Anodized
  • Color: Blue
