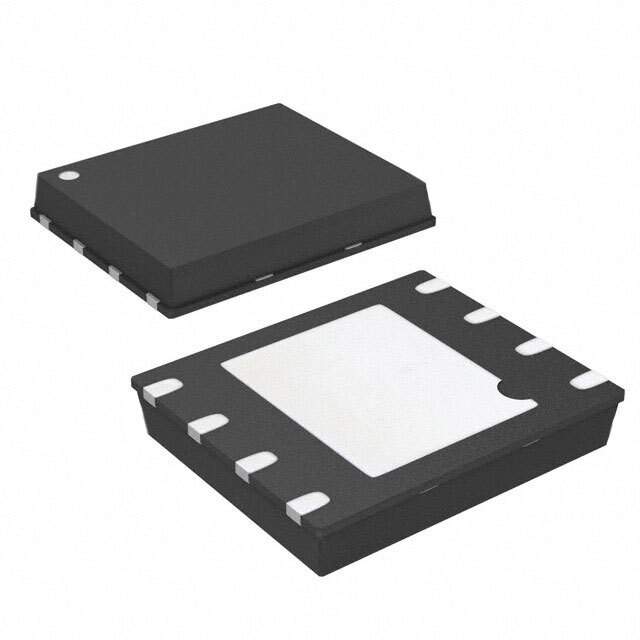

Same model may have multiple batches, images only for reference.

AT45DB161E-MHF-Y

Name: AT45DB161E-MHF-Y
Brand: Adesto Technologies
SKU: 1046541
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	AT45DB161E-MHF-Y
Manufacturer	Adesto Technologies
Catalog	Flash
Description	IC FLASH 16MBIT SPI 85MHZ 8UDFN / FLASH Memory IC 16Mb (528 Bytes x 4096 pages) SPI 85 MHz 8-UDFN (5x6)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>Memory
Mfr	Adesto Technologies
Package	Tray
Memory Type	Non-Volatile
Memory Format	FLASH
Technology	FLASH
Memory Size	16Mb (528 Bytes x 4096 pages)
Memory Interface	SPI
Clock Frequency	85 MHz
Write Cycle Time - Word, Page	8µs, 4ms
Voltage - Supply	2.3V ~ 3.6V
Temperature Range - Operating	-40°C ~ 85°C (TC)
Mounting	SMD (SMT)
Package / Case	8-UDFN Exposed Pad
Supplier Device Package	8-UDFN (5x6)
Base Product Number	AT45DB161
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.32.0071
Other Names	-AT45DB161E-MHF-Y,1265-1046
Standard Package	570
Win Source Part Number	1046541-AT45DB161E-MHF-Y
Ultra Librarian 3D Model	Ultra Librarian AT45DB161E-MHF-Y CAD Model

Description

The 1046541-AT45DB161E-MHF-Y is a 16Mb non-volatile memory integrated circuit (IC) that has a memory size of 528 Bytes x 4096 pages.

Memory Size: 16Mb (528 Bytes x 4096 pages)
Voltage Supply: 2.3V to 3.6V
Clock Frequency: 85 MHz
Write Cycle Time (Word): 8µs
Write Cycle Time (Page): 4ms
Package: 8-UDFN Exposed Pad
Mounting Technology: SMD (SMT)
Operating Temperature: -40°C to 85°C (TC)
ECCN: EAR99
Memory Format: FLASH
Memory Interface: SPI
