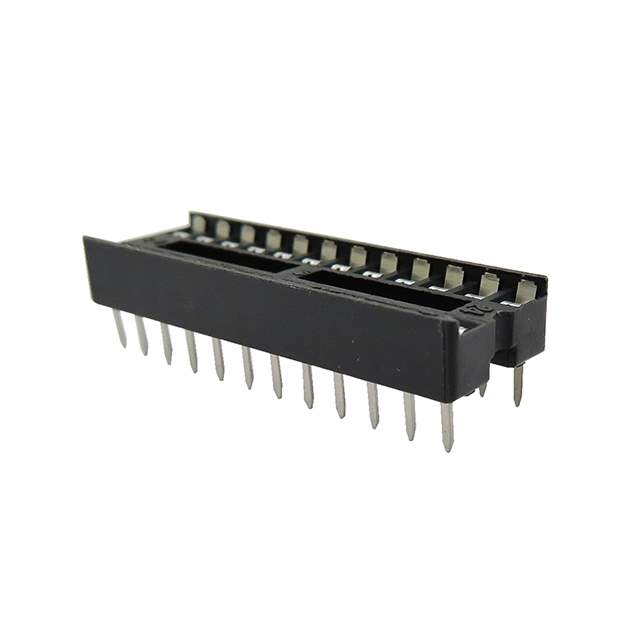

ICS-324-T Real Image
Same model may have multiple batches, images only for reference.

ICS-324-T

Part No ICS-324-T
Manufacturer Adam Technologies, Inc.
Catalog Sockets for ICs, Transistors
Description IC SOCKET, DIP, 24P 2.54MM PITCH / 24 (2 x 12) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole
Datasheet
ICS-324-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Sockets for ICs, Transistors
Mfr Adam Tech
Series ICS
Package Tube
Type DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid) 24 (2 x 12)
Pitch - Mating 0.100" (2.54mm)
Contact Finish - Mating Tin
Contact Material - Mating Phosphor Bronze
Mounting Type Through Hole
Features Open Frame
Termination Solder
Pitch - Post 0.100" (2.54mm)
Contact Finish - Post Tin
Contact Material - Post Phosphor Bronze
Housing Material Polybutylene Terephthalate (PBT), Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Termination Post Length 0.124" (3.15mm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1 A
Contact Resistance 20mOhm
Base Product Number ICS-3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2057-ICS-324-T
Standard Package 20
Win Source Part Number 1128671-ICS-324-T
Ultra Librarian 3D Model Ultra Librarian ICS-324-T CAD Model

Description

The Adam Tech ICS-324-T is a 24-pin DIP socket for ICs and transistors.

  • Pitch: 0.100" (2.54mm)
  • Contact Finish: tin
  • Material: polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Mounting Type: through-hole
  • Current Rating: 1A
  • Popularity: commonly used and has a high popularity
  • Supply and Demand: balanced
