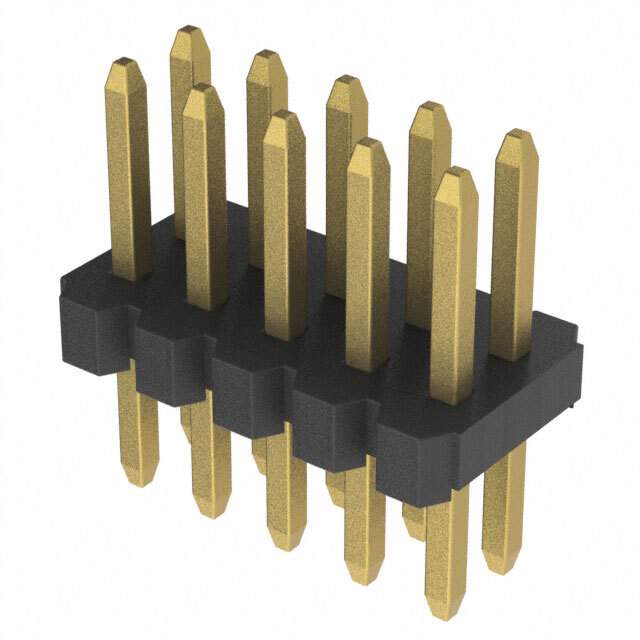

Same model may have multiple batches, images only for reference.

HPH2-A-10-UA

Name: HPH2-A-10-UA
Brand: Adam Technologies, Inc.
SKU: 1382272
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HPH2-A-10-UA
Manufacturer	Adam Technologies, Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 1.27MM / Connector Header Through Hole 10 position 0.050" (1.27mm)
Datasheet	HPH2-A-10-UA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr	Adam Technologies, Inc.
Series	HPH2
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.118" (3.00mm)
Contact Length - Post	0.091" (2.30mm)
Overall Contact Length	0.248" (6.30mm)
Insulation Height	0.039" (1.00mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish - Post	Gold
Contact Material	Brass
Insulation Material	Thermoplastic
Features	-
Temperature Range - Operating	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	1A
Voltage Rating	250VAC
Mated Stacking Heights	-
Contact Finish Thickness - Post	Flash
Applications	-
Base Product Number	HPH2-A
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1,000 pcs
Win Source Part Number	1382272-HPH2-A-10-UA
Ultra Librarian 3D Model	Ultra Librarian HPH2-A-10-UA CAD Model

Alternative Products

Description

The HPH2-A-10-UA is a male pin header connector with 10 positions.

Connector Type: Rectangular Connectors
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Contact Material: Brass
Voltage Rating: 250VAC
Current Rating: 1A
Operating Temperature: -40°C to 105°C
Manufacturer: Adam Technologies, Inc.
Certifications: CCC, CE
REACH: Unaffected
MSL: 1 (Unlimited)
