Same model may have multiple batches, images only for reference.

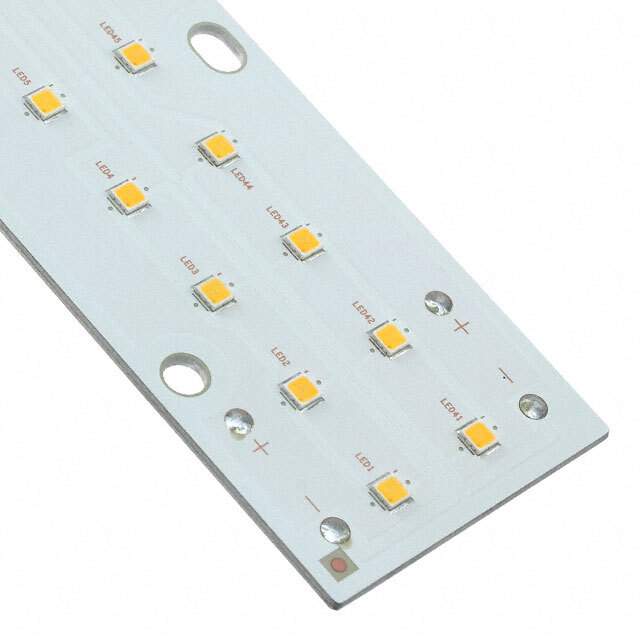

SL-B8R7NK0L2WW Real Image
Same model may have multiple batches, images only for reference.

SL-B8R7NK0L2WW

Part No SL-B8R7NK0L2WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MODULE LT-F564A 5000K STRIP / LED Lighting COBs Engines Modules LED Module series White, Cool Linear Light Strip
Datasheet
SL-B8R7NK0L2WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-F564A
Package Bulk
Product Status Obsolete
Type LED Module
Color White, Cool
CCT (K) 5000K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 9050lm (Typ)
Current - Test 1.5A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 49.6V
Lumens/Watt @ Current - Test 122 lm/W
CRI (Color Rendering Index) 80
Dimension 558.80mm L x 40.00mm W
Height 5.90mm
Lens Type Flat
Base Product Number SL-B8R7
Other Names 1510-1273
Standard Package 96
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240469-SL-B8R7NK0L2WW
Ultra Librarian 3D Model Ultra Librarian SL-B8R7NK0L2WW CAD Model

Description

The LT-F564A LED Module, offered by Samsung Semiconductor, Inc., is a linear light strip configuration LED package.

  • Product Name: LT-F564A LED Module
  • Manufacturer: Samsung Semiconductor, Inc.
  • Configuration: Linear light strip
  • Lens Type: Flat
  • Color: White and cool
  • CCT: 5000K
  • Forward Voltage: 49.6V
  • Test Current: 1.5A
  • Maximum Current: Not specified
  • Height: 5.90mm
  • Dimension: 558.80mm L x 40.00mm W
  • Luminous Flux @ Current/Temperature: 9050lm (Typ) @ 1.5A/25°C
  • Lumens/Watt: 122 lm/W @ the test current
  • Color Rendering Index: 80
  • Viewing Angle: Not specified
