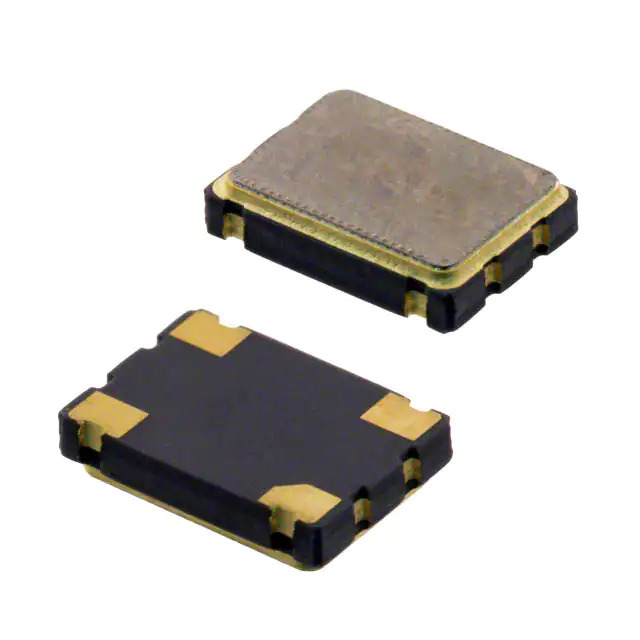

Same model may have multiple batches, images only for reference.
ASV-16.384MHZ-EJ-T Abracon LLC
Same model may have multiple batches, images only for reference.

ASV-16.384MHZ-EJ-T

Part No ASV-16.384MHZ-EJ-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 16.3840MHZ HCMOS SMD
Datasheet
ASV-16.384MHZ-EJ-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASV
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 16.384 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -20°C ~ 70°C
Current - Supply (Max) 15mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.200" W (7.00mm x 5.08mm)
Height - Seated (Max) 0.071" (1.80mm)
Current - Supply (Disable) (Max) 10µA
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1366384-ASV-16.384MHZ-EJ-T
Ultra Librarian 3D Model Ultra Librarian ASV-16.384MHZ-EJ-T CAD Model

Description

The ASV-16.384MHZ-EJ-T is a 16.384 MHz oscillator from Abracon LLC.

  • Manufacturer: Abracon LLC
  • Series: ASV
  • Frequency: 16.384 MHz
  • Package / Case: 4-SMD, No Lead
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.276" L x 0.200" W (7.00mm x 5.08mm)
  • Height - Seated (Max): 0.071" (1.80mm)
  • Operating Temperature: -20°C to 70°C
  • REACH: Unaffected
  • Voltage - Supply: 3.3V
  • Current - Supply: 15mA
  • Frequency Stability: ±20ppm
