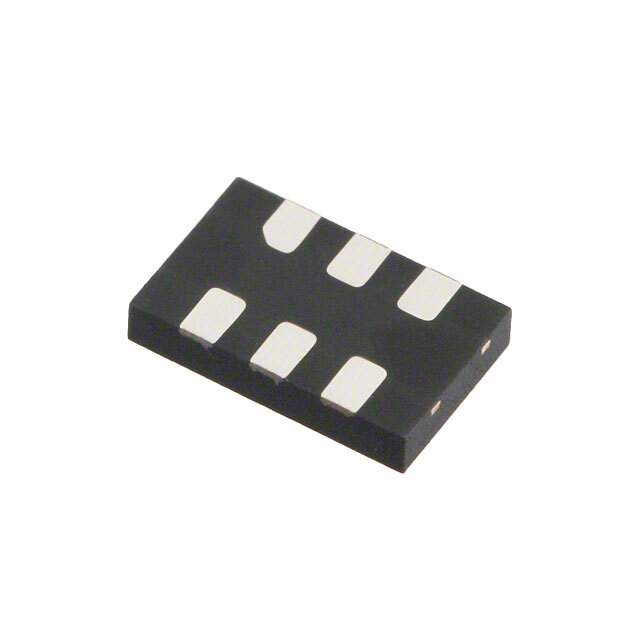

ASFLMPHC-100.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASFLMPHC-100.000MHZ-LR-T

Part No ASFLMPHC-100.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 100.0000MHZ HCSL SMD / 100 MHz XO (Standard) HCSL Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Datasheet
ASFLMPHC-100.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASFLMP, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output HCSL
Voltage - Supply 2.25V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 60mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 22mA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1350000-ASFLMPHC-100.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASFLMPHC-100.000MHZ-LR-T CAD Model

Description

The ASFLMPHC-100.000MHZ-LR-T oscillator is a standard XO oscillator that is part of the ASFLMP, Pure Silicon™ series.

  • Mounting Type: Surface Mount
  • Size / Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • Height - Seated (Max): 0.035" (0.90mm)
  • Standard Package: 1,000
  • Frequency: 100 MHz
  • Current - Supply (Max): 60mA
  • Output: HCSL
  • Operating Temperature: -40°C ~ 85°C
