Same model may have multiple batches, images only for reference.

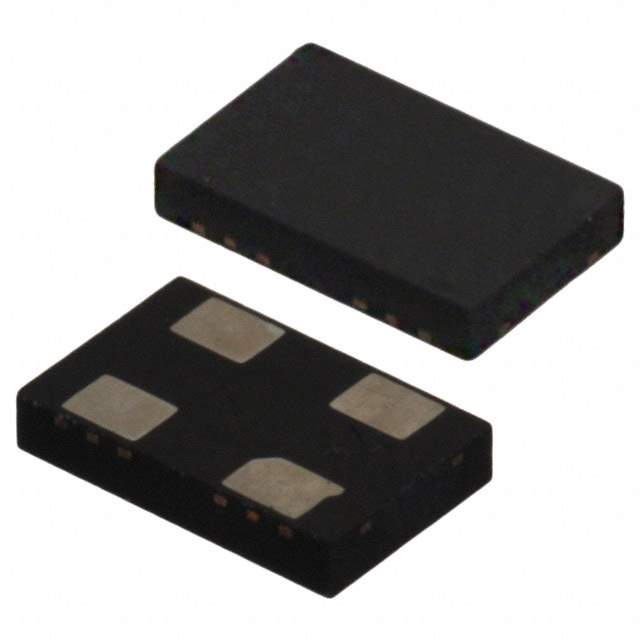

ASFLMB-20.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASFLMB-20.000MHZ-LC-T

Part No ASFLMB-20.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 20.0000MHZ LVCMOS / 20 MHz XO (Standard) LVCMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASFLMB-20.000MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASFLMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 20 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 16mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343610-ASFLMB-20.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASFLMB-20.000MHZ-LC-T CAD Model

Description

The 1343610-ASFLMB-20.000MHZ-LC-T is a standard XO oscillator from the ASFLMB Pure Silicon™ series of Abracon LLC.

  • Package: 4-SMD, No Lead
  • Function: Standby (Power Down)
  • Output: LVCMOS
  • Frequency Stability: ±50ppm
  • Frequency: 20 MHz
  • Current Supply: 16mA
  • Voltage Supply: 1.8V ~ 3.3V
  • Temperature Range: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Base Resonator: MEMS
  • Absolute Pull Range (APR): -
  • REACH: Unaffected
  • Applications: Networking, Storage, Computing Systems
