Same model may have multiple batches, images only for reference.

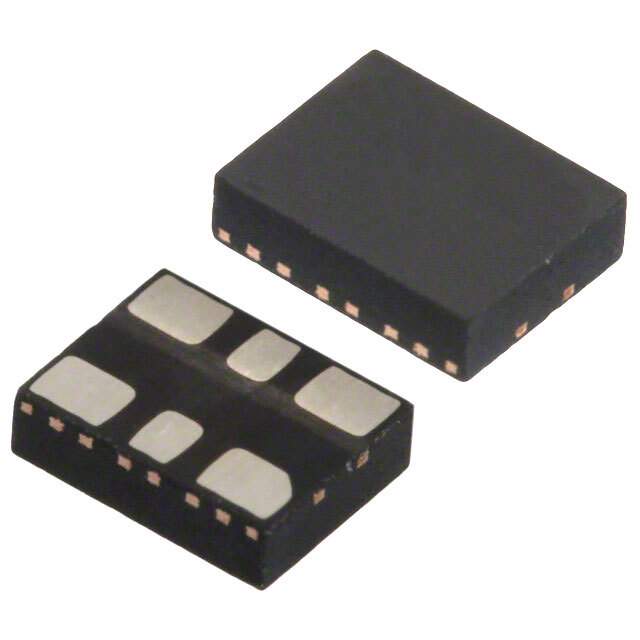

ASEMPLP-156.250MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASEMPLP-156.250MHZ-LR-T

Part No ASEMPLP-156.250MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 156.2500MHZ LVPECL / 156.25 MHz XO (Standard) LVPECL Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Datasheet
ASEMPLP-156.250MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASEMP, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 26mA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1343402-ASEMPLP-156.250MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASEMPLP-156.250MHZ-LR-T CAD Model

Description

The 1343402-ASEMPLP-156.250MHZ-LR-T is a standard XO oscillator from the ASEMP Pure Silicon™ series of Abracon LLC.

  • Package: 6-SMD, No Lead
  • Function: Enable/Disable
  • Output: LVPECL
  • Frequency Stability: ±25ppm
  • Frequency: 156.25 MHz
  • Current Supply: 35mA
  • Voltage Supply: 2.25V ~ 3.6V
  • Temperature Range: -40°C ~ 85°C
  • Mounting Type: Surface Mount
  • Base Resonator: MEMS
  • Frequency Stability: ±50ppm
  • Absolute Pull Range (APR): -
  • REACH: Unaffected
  • Applications: Telecom, Networking, Storage, Computing Systems
