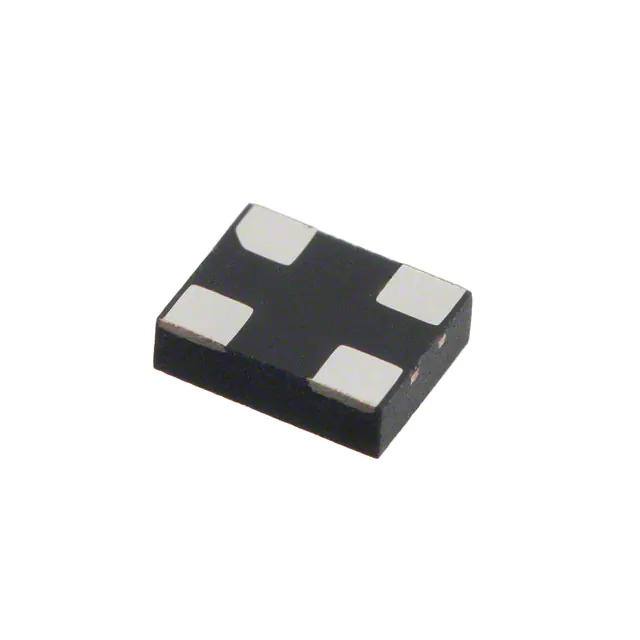

Same model may have multiple batches, images only for reference.
ASEMB-26.000MHZ-XY-T Abracon LLC
Same model may have multiple batches, images only for reference.

ASEMB-26.000MHZ-XY-T

Part No ASEMB-26.000MHZ-XY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 26.0000MHZ CMOS SMD / 26 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEMB-26.000MHZ-XY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASEMB, Pure Silicon™
Package Tape & Reel
Product Status Active
Base Resonator MEMS
Type XO (Standard)
Frequency 26 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 16mA
Ratings -
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1353714-ASEMB-26.000MHZ-XY-T
Ultra Librarian 3D Model Ultra Librarian ASEMB-26.000MHZ-XY-T CAD Model

Description

The ASEMB-26.000MHZ-XY-T is a 26 MHz XO (Standard) oscillator manufactured by Abracon LLC.

  • Manufacturer: Abracon LLC
  • Series: ASEMB, Pure Silicon™
  • Mounting Type: Surface Mount
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.035" (0.90mm)
  • Operating Temperature: -40°C to 105°C
  • REACH: Unaffected
  • Function: Standby (Power Down)
  • Voltage Supply: 1.8V to 3.3V
  • Maximum Supply Current: 16mA
  • Maximum Disable Current: 15µA
  • Base Resonator: MEMS
  • Output: CMOS
  • Frequency Stability: ±10ppm
  • Frequency: 26 MHz
