Same model may have multiple batches, images only for reference.

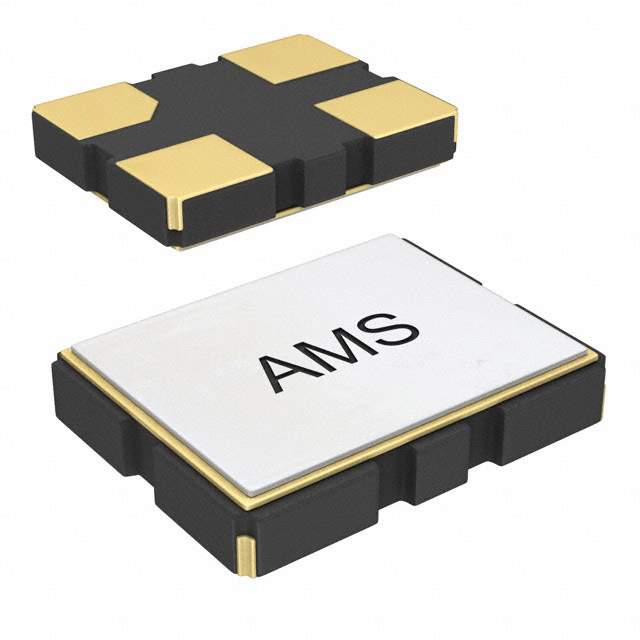

ASE-10.000MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASE-10.000MHZ-LC-T

Part No ASE-10.000MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 10.0000MHZ CMOS SMD / 10 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASE
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 10 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names ASE10000MHZLCT,535-9559-6,ASE-10.000MHZ-L-C-T,535-9559-2,535-9559-1
Standard Package 1,000
Win Source Part Number 1046113-ASE-10.000MHZ-LC-T
Ultra Librarian 3D Model Ultra Librarian ASE-10.000MHZ-LC-T CAD Model

Description

This ASE series XO standard electronic component is designed to enable/disable the frequency output of CMOS oscillators, with a frequency of 10 MHz and a frequency stability of ±50ppm.

  • Frequency: 10 MHz
  • Frequency Stability: ±50ppm
  • Current Supply: 7mA
  • Maximum Disable Current Supply: 10μA
  • Voltage Supply: 3.3V
  • Package: Tape and Reel
  • Mounting Style: SMD (SMT)
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Alternative to: MAX2620EUA, ECS-2333-100-BN-TR, ASFL1-10.000MHZ-EC-T, ASEMB-10.000MHZ-LC-T, CB3LV-3I-10M0000, ASFLMB-10.000MHZ-LC-T, and 636L3I010M00000
