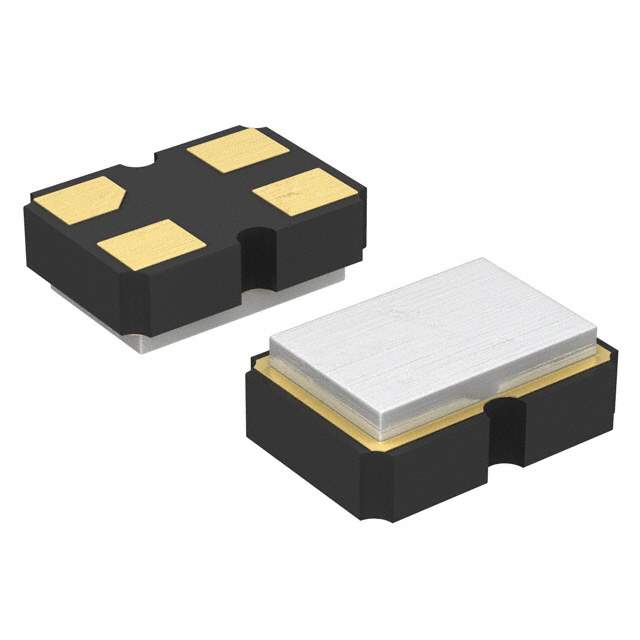

ASD-11.0592MHZ-LC-T Real Image
Same model may have multiple batches, images only for reference.

ASD-11.0592MHZ-LC-T

Part No ASD-11.0592MHZ-LC-T
Manufacturer Abracon LLC
Catalog Oscillators
Description OSC XO 11.0592MHZ HCMOS SMD
Datasheet
ASD-11.0592MHZ-LC-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Series ASD
Packaging Reel package
Type XO (Standard)
Frequency 11.0592MHz
Function Enable/Disable
Output HCMOS
Operating Supply Voltage 3.3V
Frequency Stability ±50ppm
Operating Temperature Range -40°C ~ 85°C
Maximum Supply Current 5mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.039" (1.00mm)
Current - Supply (Disable) (Maximum) 20μA
Win Source Part Number 794020-ASD-11.0592MHZ-LC-T
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ASD-11.0592MHZ-LC-T CAD Model

Description

The 794020-ASD-11.0592MHZ-LC-T from Abracon LLC is a standard XO with a frequency of 11.0592MHz.

  • Frequency Stability: ±50ppm
  • Temperature Range: -40°C to 85°C
  • Height: 0.039" (1.00mm)
  • Mounting Type: SMD
  • Package: 4-SMD, no lead
  • Maximum Supply Current: 5mA
  • Current Supply (Disabled): 20μA
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
