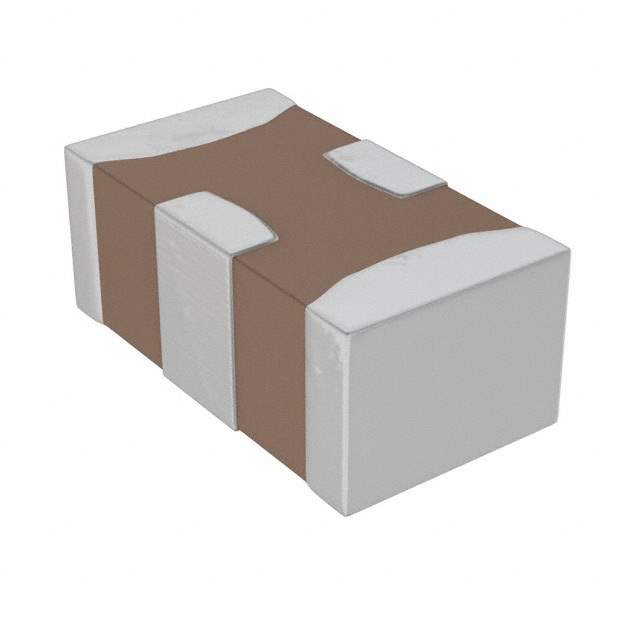

The 500X14W102MV4T is a multilayer ceramic capacitor (MLCC) manufactured by Johanson Dielectrics Inc. It is designed for surface mount applications and offers a capacitance value of 1000pF (102) with a tolerance of ±20%. This capacitor is part of the X7R series, known for its stable temperature characteristics, and features a voltage rating of 50V. Its compact size and reliable performance make it suitable for a wide range of electronic circuits.

Applications

• Bypass and decoupling in digital circuits
• Filtering in power supplies
• Timing circuits
• Resonant circuits
• General-purpose applications in consumer electronics, industrial equipment, and telecommunications

Features

• Surface mount design (SMD) for automated assembly
• X7R dielectric material for stable capacitance over temperature
• High capacitance value in a small package size
• Voltage rating of 50V
• RoHS compliant and lead-free

Benefits

• Reduced noise and improved signal integrity in digital circuits
• Stable and reliable performance over a wide temperature range
• Minimized board space requirements
• Easy integration into automated manufacturing processes
• Environmentally friendly due to RoHS compliance

Additional Details

The Johanson Dielectrics 500X14W102MV4T MLCC is constructed using multiple layers of ceramic dielectric material interleaved with metal electrodes. The X7R dielectric provides a stable capacitance value over a temperature range of -55°C to +125°C, with a maximum capacitance change of ±15%. The capacitor is available in a standard EIA case size and is suitable for reflow soldering processes.

The capacitor's voltage rating of 50V allows it to be used in circuits with relatively high voltage levels. The surface mount design facilitates automated assembly, reducing manufacturing costs and improving production efficiency. The RoHS compliance ensures that the capacitor does not contain any hazardous substances, making it suitable for use in environmentally sensitive applications.

Proper handling and storage are essential to maintain the capacitor's performance and reliability. The capacitor should be stored in a dry environment and protected from excessive humidity and temperature variations. When soldering the capacitor, it is important to follow the manufacturer's recommended soldering profile to avoid damaging the component.
