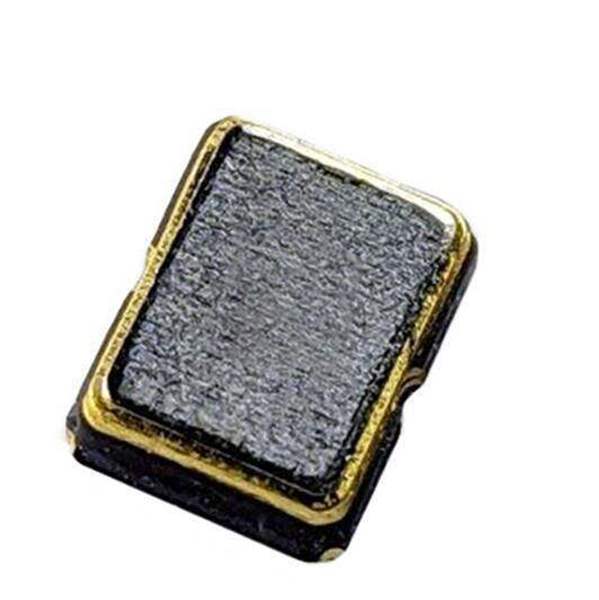

AK2PAF1-156.2500TAbracon LLC
Same model may have multiple batches, images only for reference.

AK2PAF1-156.2500T

Part No AK2PAF1-156.2500T
Manufacturer Abracon LLC
Catalog Oscillators
Description 156.25 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Oscillators
Part Status Active
Frequency 156.25 MHz
Function Enable/Disable
Voltage - Supply 3.3V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Win Source Part Number WS1211568-AK2PAF1-156.2500T
Ultra Librarian 3D Model Ultra Librarian AK2PAF1-156.2500T CAD Model

Description

• Based on 3rd Overtone, Quartz Crystal Technology<br /> • Ultra-low rms jitter; < 120fs typical @ 156.25MHz • Lowest in-class power consumption (15mA max with LVDS) • ±25ppm max & ±30ppm max stability over -20°C to +70°C and - 40°C to +85°C respectively • 3.3V, 2.5V & 1.8V supply voltage options<br /> • LVPECL, LVDS and HCSL differential output options<br /> • Output enabled (Active High standard default)
