Same model may have multiple batches, images only for reference.

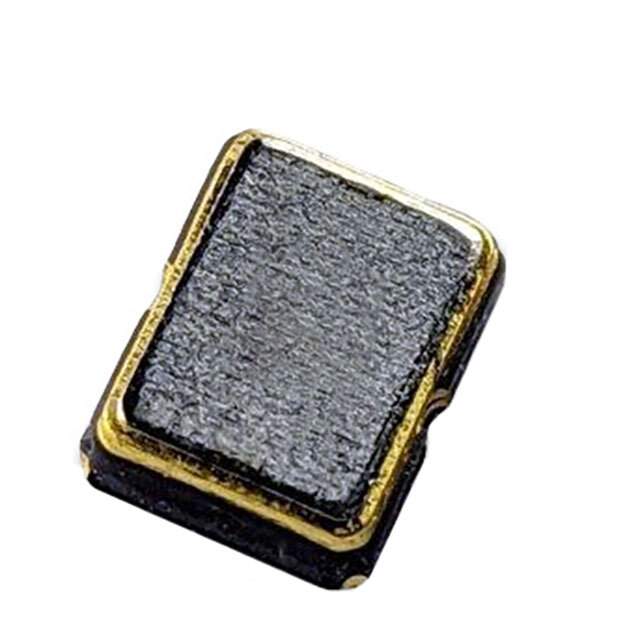

AK2DCF2-100.00000T Real Image
Same model may have multiple batches, images only for reference.

AK2DCF2-100.00000T

Part No AK2DCF2-100.00000T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 100MHZ 1.8V LVDS / 100 MHz XO (Standard) LVDS Oscillator 1.8V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AK2
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 100 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 1.8V
Frequency Stability ±30ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338023-AK2DCF2-100.00000T
Ultra Librarian 3D Model Ultra Librarian AK2DCF2-100.00000T CAD Model

Description

The AK2DCF2-100.00000T is a surface-mountable XO (Standard) oscillator from Abracon LLC.

  • Series: ClearClock™ AK2
  • Frequency: 100 MHz
  • Package: Tape & Reel
  • Size / Dimension: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height - Seated (Max): 0.043" (1.10mm)
  • Output: LVDS
  • Function: Enable/Disable
  • Frequency Stability: ±30ppm
  • Current - Supply (Max): 15mA
  • Voltage - Supply: 1.8V
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount
