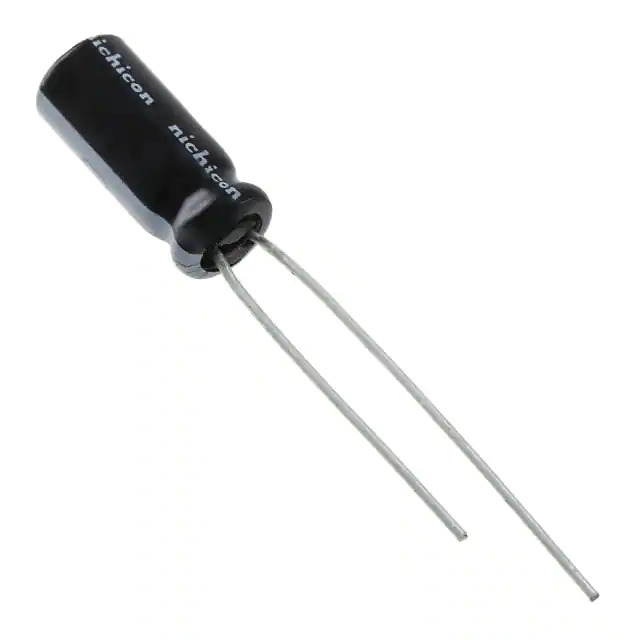

UVZ1H4R7MDD Nichicon
Same model may have multiple batches, images only for reference.

UVZ1H4R7MDD

Part No UVZ1H4R7MDD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 4.7UF 20% 50V RADIAL / 4.7 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet
UVZ1H4R7MDD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Bulk
Product Status Obsolete
Capacitance 4.7 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 30 mA @ 120 Hz
Ripple Current @ High Frequency 60 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357781-UVZ1H4R7MDD
Ultra Librarian 3D Model Ultra Librarian UVZ1H4R7MDD CAD Model

Description

The 1357781-UVZ1H4R7MDD is an aluminum electrolytic capacitor from Nichicon's UVZ series.

  • Series: UVZ
  • Capacitance: 4.7 μF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • Application: General-Purpose
  • Ripple Current (120 Hz): 30 mA
  • Ripple Current (10 kHz): 60 mA
  • Lead Spacing: 0.079"
  • Size: 0.197" Dia x 0.492" H
  • Lifetime: 1000 Hours @ 105°C
  • REACH: Unaffected
  • Mounting Type: Through-Hole
