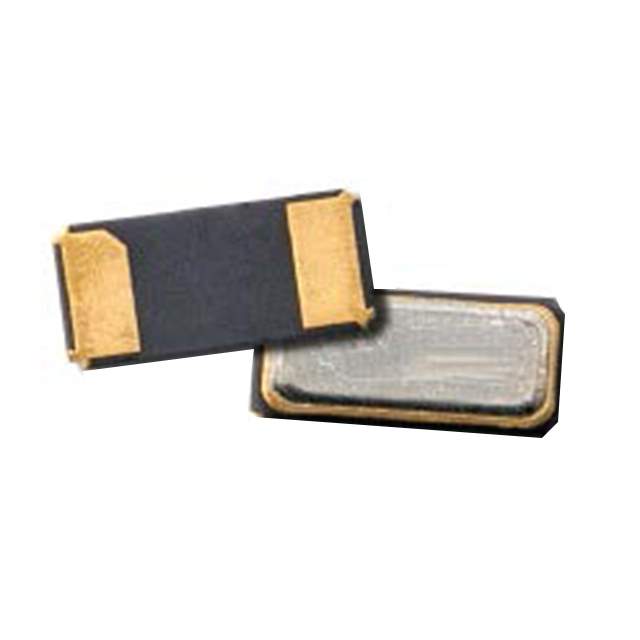

ABS07W-32.768KHZ-K-1-T

Part No ABS07W-32.768KHZ-K-1-T
Manufacturer Abracon LLC
Catalog Oscillators
Datasheet
ABS07W-32.768KHZ-K-1-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS07W
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±10ppm
Load Capacitance 3pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Other Names 535-14104-1,535-14104-2,535-14104-6
Standard Package 3,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1285003-ABS07W-32.768KHZ-K-1-T
Ultra Librarian 3D Model Ultra Librarian ABS07W-32.768KHZ-K-1-T CAD Model

Description

The ABS07W-32.768KHZ-K-1-T is a kHz crystal (tuning fork) with a frequency of 32.768 kHz and voltage rating of Not Applicable.

  • Frequency: 32.768 kHz
  • Voltage Rating: Not Applicable
  • Mounting Type: Surface-mount device (SMD)
  • Packaging: Tape & reel
  • Package: 2-SMD, no lead
  • Dimensions: 0.126" L x 0.059" W (3.20mm x 1.50mm)
  • Height Seated (Max): 0.035" (0.90mm)
  • ESR (Equivalent Series Resistance): 70 kOhms
  • Frequency Tolerance: ±10ppm
  • Operating Mode: Fundamental
  • Operating Temperature: -40°C ~ 125°C
  • ECCN: EAR99
  • REACH: Unaffected
