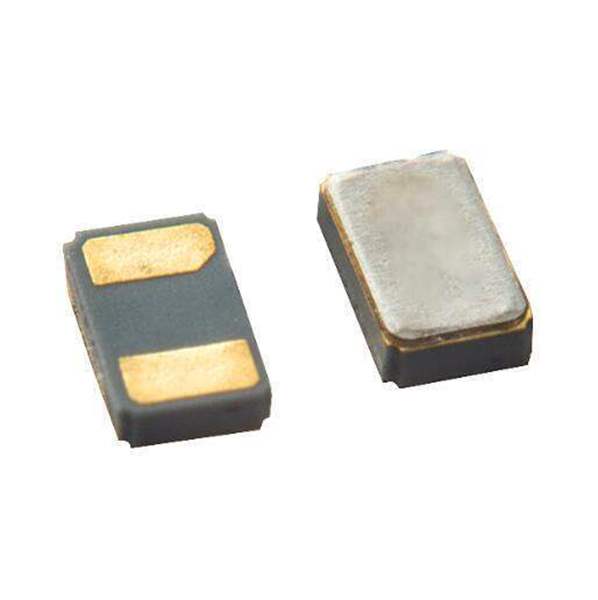

ABS05W-32.768KHZ-D-2-T Abracon LLC
Same model may have multiple batches, images only for reference.

ABS05W-32.768KHZ-D-2-T

Part No ABS05W-32.768KHZ-D-2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 4PF SMD
Datasheet
ABS05W-32.768KHZ-D-2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Abracon LLC
Category Crystals, Oscillators, Resonators Crystals
Part Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
ESR (Equivalent Series Resistance) 70 kOhms
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Win Source Part Number WS1305228-ABS05W-32.768KHZ-D-2-T
Ultra Librarian 3D Model Ultra Librarian ABS05W-32.768KHZ-D-2-T CAD Model

Description

FEATURES:
•  Exceptionally low plating load of 4.0pF, ideal for wearables, wireless, and IoT applications
• Simultaneously optimized for ESR over extended operating temperature range
• Miniature 1.6 x 1.0 x 0.5 mm SMD package, ideally suited for space constrained designs
• Available with ±20 ppm set tolerance
• Seam sealed package for long term reliability
