Same model may have multiple batches, images only for reference.

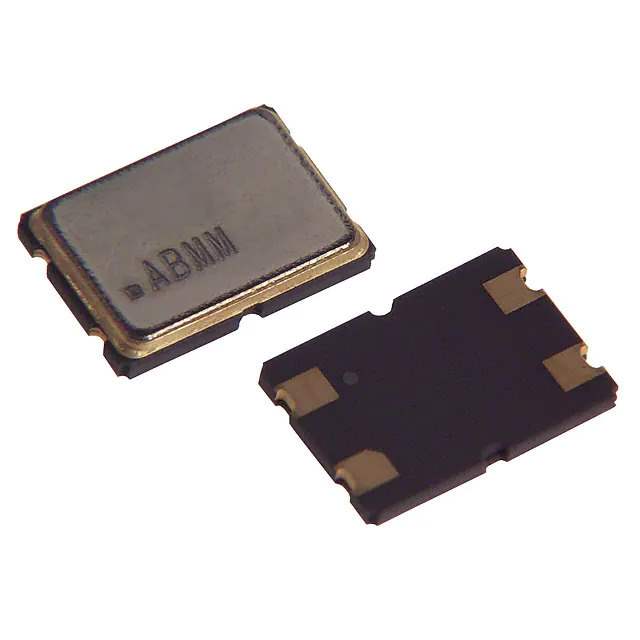

ABMM-8.000MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABMM-8.000MHZ-B2-T

Part No ABMM-8.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 8.0000MHZ 18PF SMD / 8 MHz ±20ppm Crystal 18pF 70 Ohms 4-SMD, No Lead
Datasheet
ABMM-8.000MHZ-B2-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABMM
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 70 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.051" (1.30mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 845147-ABMM-8.000MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABMM-8.000MHZ-B2-T CAD Model

Description

The 845147-ABMM-8.000MHZ-B2-T is a MHz crystal from the ABMM series by Abracon LLC.

  • Series: ABMM
  • Frequency: 8 MHz
  • Tolerance: ±20ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
  • Package: 4-SMD, No Lead
  • Mounting: Surface Mountable
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Height: 0.051" (1.30mm)
  • Temperature Range: -20°C to 70°C
  • ESR: 70 Ohms
  • Standard Package: 1,000 pcs
  • Product Status: Active
