Same model may have multiple batches, images only for reference.

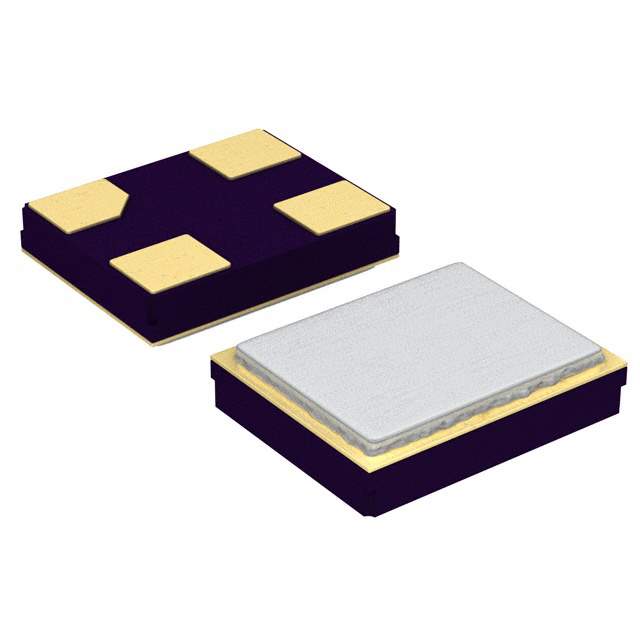

ABM11-24.000MHZ-12-B1U-T Real Image
Same model may have multiple batches, images only for reference.

ABM11-24.000MHZ-12-B1U-T

Part No ABM11-24.000MHZ-12-B1U-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.0000MHZ 12PF SMD / 24 MHz ±10ppm Crystal 12pF 100 Ohms 4-SMD, No Lead
Datasheet
ABM11-24.000MHZ-12-B1U-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM11
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 12pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.023" (0.59mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-14951-2,535-14951-1,535-14951-6
Standard Package 1,000
Win Source Part Number 1073374-ABM11-24.000MHZ-12-B1U-T
Ultra Librarian 3D Model Ultra Librarian ABM11-24.000MHZ-12-B1U-T CAD Model

Description

The ABM11 series crystal oscillator manufactured by Abracon LLC is a high-quality electronic component that features a frequency of 24 MHz, a frequency tolerance of ±10ppm, and a load capacitance of 12pF.

  • Frequency: 24 MHz
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 12pF
  • Package: tape and reel
  • Standard Package: 1000 units per package
  • Mounting Type: surface mount
  • Height: 0.023" (0.59mm)
  • Operating Temperature Range: -20°C to 70°C
  • ESR: 100 Ohms
  • Frequency Stability: ±10ppm
  • ECCN: EAR99
