Same model may have multiple batches, images only for reference.

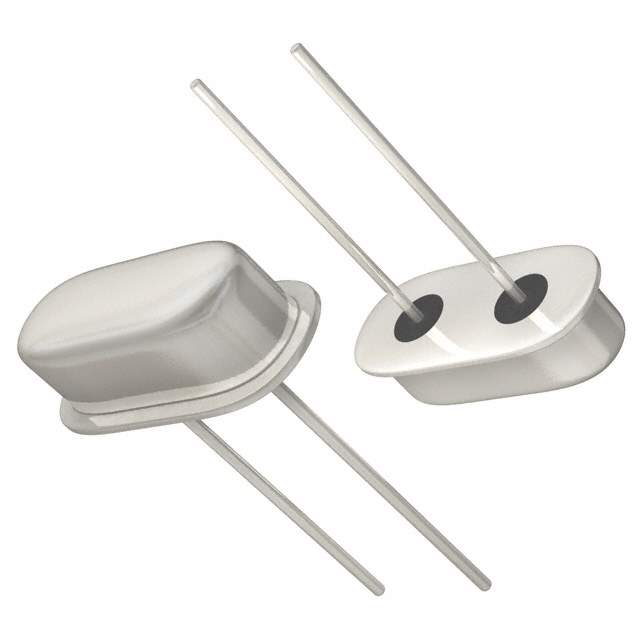

ABL-3.579545MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

ABL-3.579545MHZ-B2

Part No ABL-3.579545MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 3.579545MHZ 18PF TH / 3.579545 MHz ±20ppm Crystal 18pF 180 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABL
Package Bulk
Type MHz Crystal
Frequency 3.579545 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 180 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Other Names 300-9053-ND,535-9053,300-9053
Standard Package 1,000
Win Source Part Number 1068382-ABL-3.579545MHZ-B2
Ultra Librarian 3D Model Ultra Librarian ABL-3.579545MHZ-B2 CAD Model

Description

The ABL-3.579545MHZ-B2 is a MHz crystal from Abracon LLC.

  • Standard Package: 1,000
  • Mounting Type: Through-Hole
  • Frequency: 3.579545 MHz
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • ESR: 180 Ohms
  • Operating Temperature: -20°C ~ 70°C
  • Dimensions: 0.453" L x 0.197" W (11.50mm x 5.00mm)
  • Category: Crystals, Oscillators, and Resonators
