Same model may have multiple batches, images only for reference.

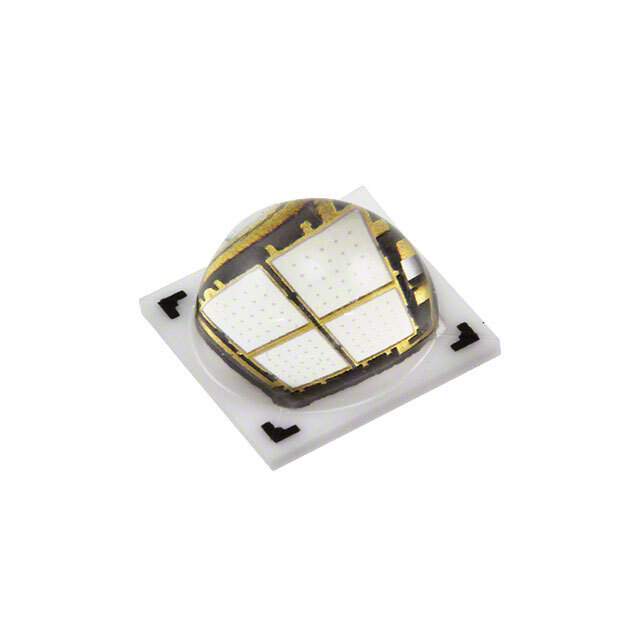

LXR0-QR00 Real Image
Same model may have multiple batches, images only for reference.

LXR0-QR00

Part No LXR0-QR00
Manufacturer Lumileds
Catalog LED Lighting - Color
Description LED LUXEON M BLUE 453NM SMD / LED Lighting Color series Blue 453nm (445nm ~ 460nm) 2828 (7070 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - Color
Mfr Lumileds
Series LUXEON M
Package Tape & Reel
Product Status Obsolete
Color Blue
Wavelength 453nm (445nm ~ 460nm)
Current - Test 2.8A
Voltage - Forward (Vf) (Typ) 2.8V
Current - Max 4.2A
Luminous Flux @ Current/Temperature 4350mW (4200mW ~ 4500mW)
Temperature - Test 85°C
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 2828 (7070 Metric)
Supplier Device Package SMD
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.152" (3.87mm)
Thermal Resistance of Package 1.25°C/W
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1163-6,1416-1163-2,1416-1163-1
Standard Package 500
Win Source Part Number 1073239-LXR0-QR00
Ultra Librarian 3D Model Ultra Librarian LXR0-QR00 CAD Model

Description

Lumileds has manufactured the LXR0-QR00 electronic component.

  • Lighting Color: Blue
  • Viewing Angle: 120°
  • Voltage Forward: 2.8V
  • Maximum Current: 4.2A
  • Mounting Type: SMD (SMT)
  • Thermal Resistance of Package: 1.25°C/W
  • Package: 2828 (7070 Metric)
  • Dimension: 0.276" L x 0.276" W (7.00mm x 7.00mm)
  • Product Status: Obsolete
  • Luminous Flux @ Current/Temperature: 4350mW (4200mW ~ 4500mW)
